Connect ESC Signal Cable

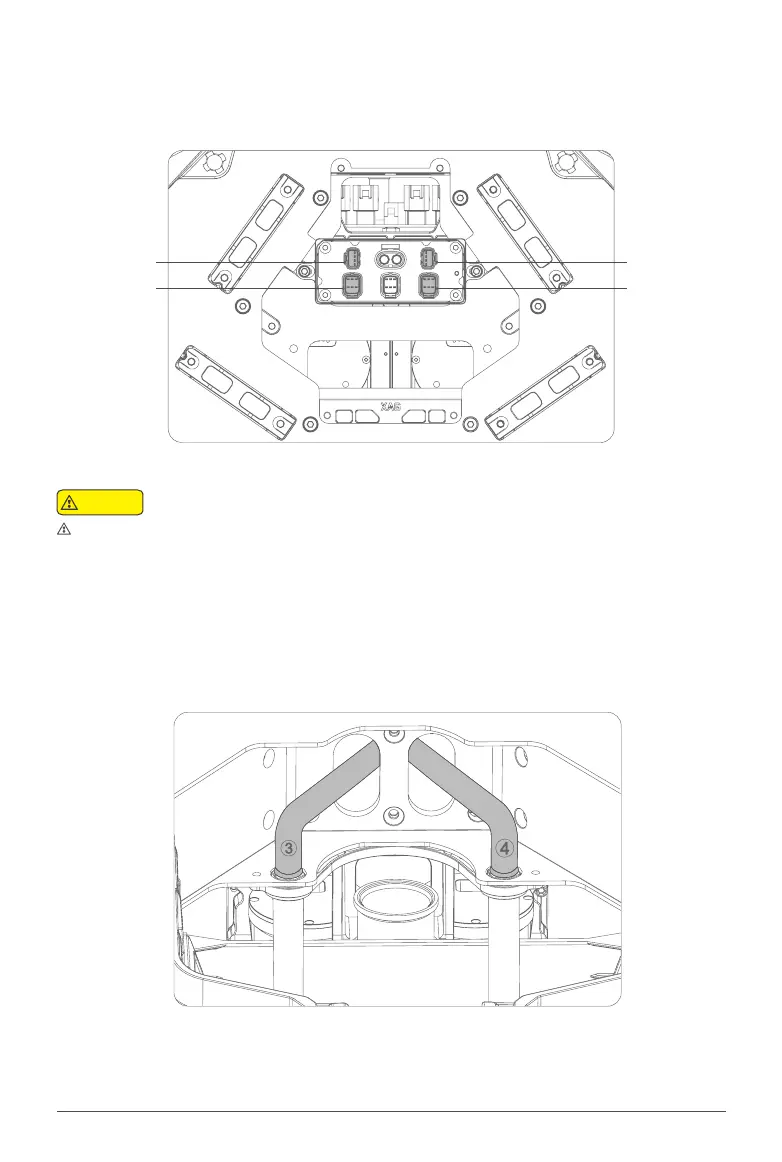

Connect ESC Signal Cable inside the Arm to ESC hub.
Connect Liquid tube
Pull the Liquid Tube inside Arm No.3 & No.4 through the hole as shown below and connect it to the
Peristaltic Pump.
ESC for Arm No.4ESC for Arm No.3
ESC for Arm No.2 ESC for Arm No.1
NEVER swap the ESC Signal Cables between M1 and M2, M3 and M4, as incorrect connection may
cause ight accidents
Warning
To Next Page
