www.xa.com/en
12
Reassembly of Removed Parts

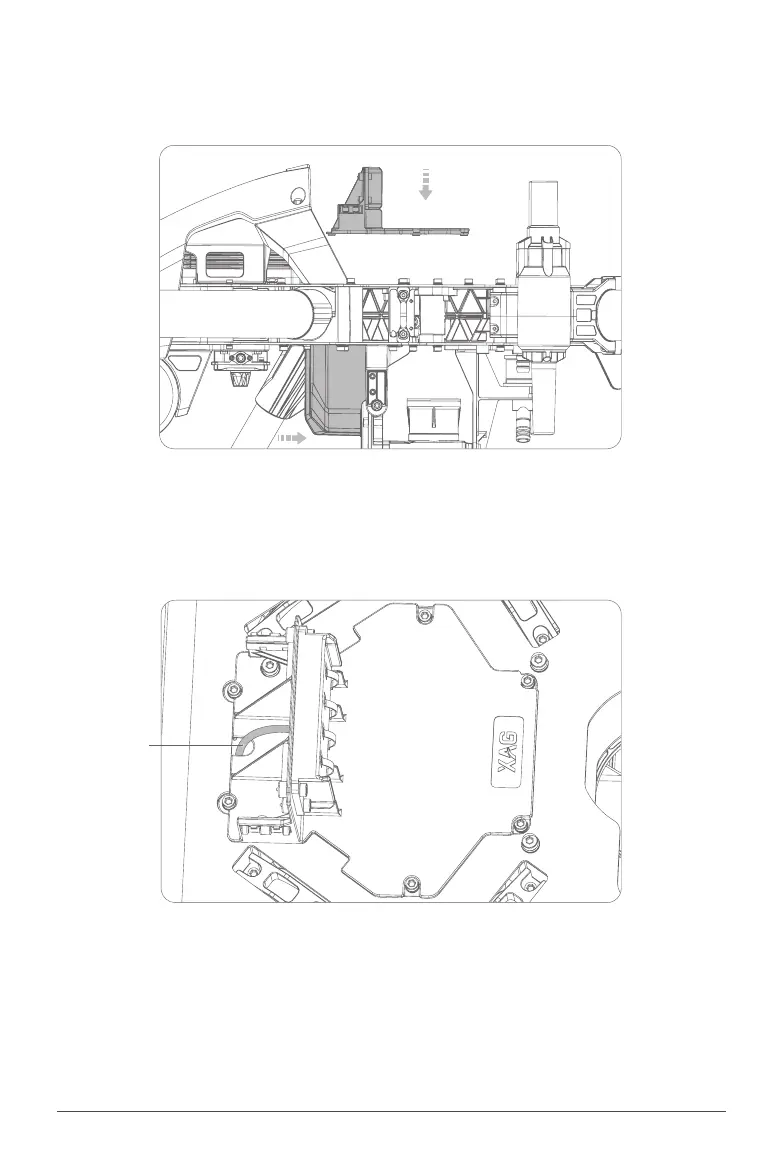

Fit the Spraying Hub Housing and Central Cabin Cover.
When 󽗉tting the Central Cabin Cover, put the Liquid Tank Sensor Cable correctly and connect it to
the Spraying Hub. (Please refer to Page 4 for the exact place).
Liquid Tank
Sensor Cable
