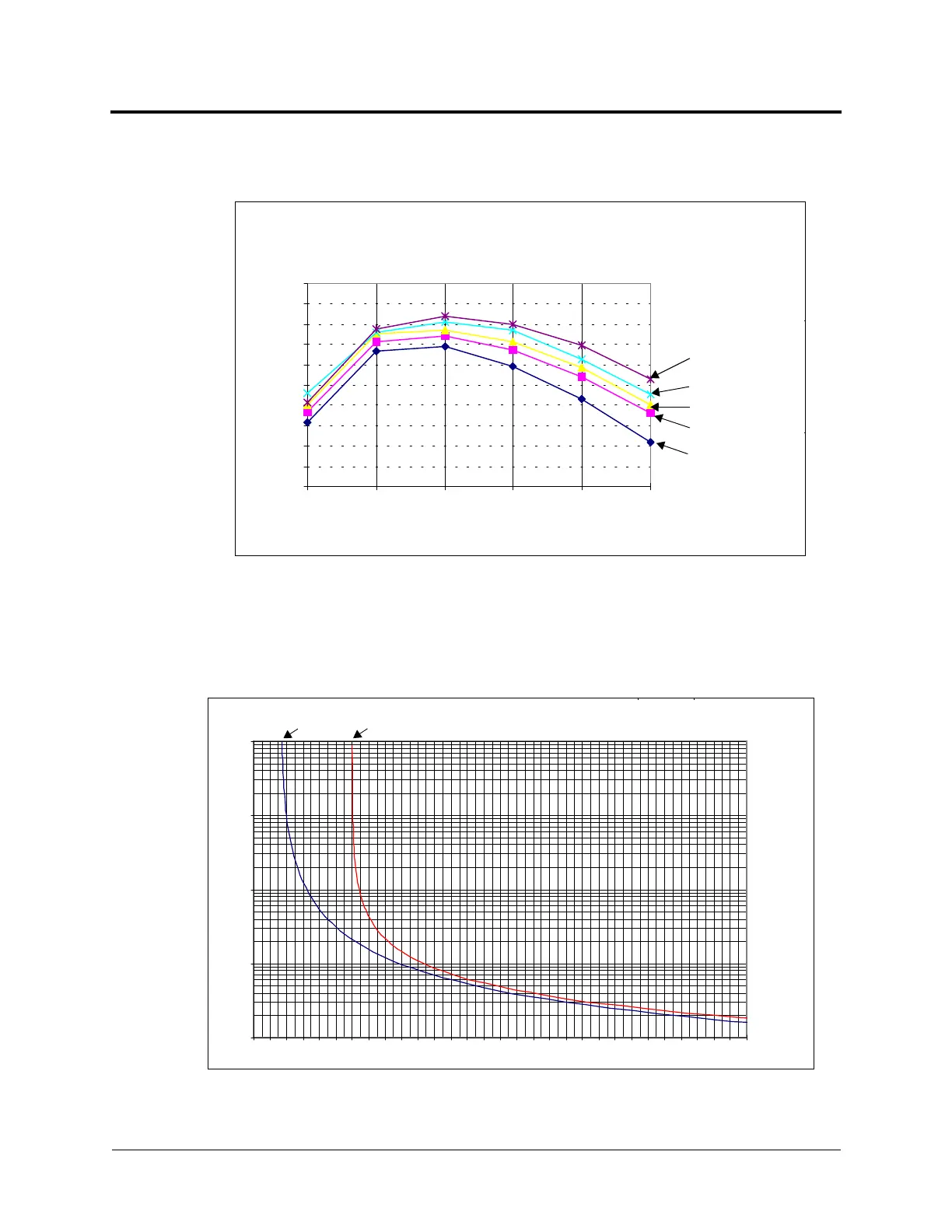

Prosine 2.5/3.0 Installation & Operation Guide 83
Appendix A: Specifications
Prosine 2.5 Efficiency Curve
Prosine Over-Current Shutdown Response
Prosine 2.5 Efficiency
120Vac, 12Vdc model
80.0
81.0
82.0
83.0
84.0
85.0
86.0
87.0
88.0
89.0
90.0
500 1000 1500 2000 2500 3000
Output Power (Watts)
Efficeincy (%)
Eff. @10.5 V
Eff. @11.5 V
Eff. @ 12.0 V
Eff. @12.5 V
Eff. @13.5 V
Eff. @ 10.5V
Eff. @ 11.5V
Eff. @ 12.0V
Eff. @ 12.5V
Eff. @ 13.0V
PROsine Output Protection
1.0
10.0
100.0
1000.0
10000.0
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
Output current (Amps)
Time to shutdown (Seconds)
PS2 .5
PS3 .0
PS2.5 PS3.0
Prosine Output Protection

Xantrex Prosine PS2.5 Specifications

General

Brand	Xantrex
Model	Prosine PS2.5
Category	Inverter
Language	English
