3.0 OPERATION
44 ©2000 Xantrex Technology Inc.
Minimum
( 45 VAC for 120 VAC models)
Maximum
(105 VAC for 120 VAC models)
AC Transfer Voltage (adjustable)
with ODP Enabled
AC Transfer Voltage (adjustable)
with ODP Disabled
Maximum
(105 VAC for 120 VAC models)
Minimum
( 45 VAC for 120 VAC models)

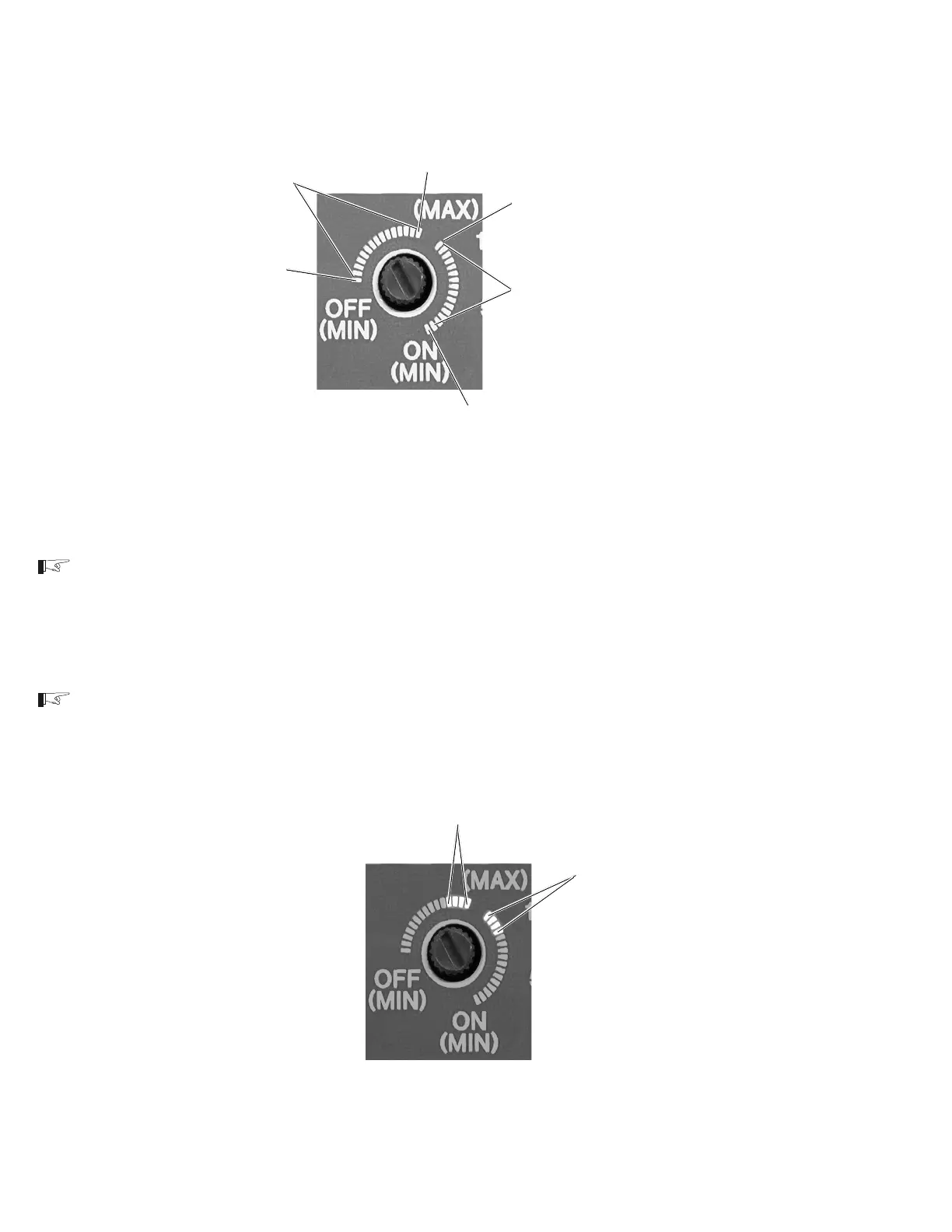

Figure 39
AC Transfer Voltage Potentiometer
Front Panel Controls and Indicators (continued)
NOTE: Most AC appliances will operate properly with an AC pass-through voltage between 95 and
105 volts. Setting the AC Transfer Voltage potentiometer between these values will allow the
incoming source voltage to drop to this level and still operate the connected appliances (load). If the
appliances do not operate properly at the lower AC utility pass-through voltage, increasing the
setting of the potentiometer (toward MAX) allows the inverter to transfer to battery power (providing
full AC output) during these periods.
NOTE: When setting the AC Transfer Voltage potentiometer for generator applications, the setting
may need to be lowered if high powered loads cause the generator voltage to momentarily drop.
Typical Setting Range for utility
applications (ODP OFF)
Typical Setting Range for
utility applications (ODP ON)
Figure 40
Typical Setting for Most Utility Applications
