Installing Truecharge+
2–4

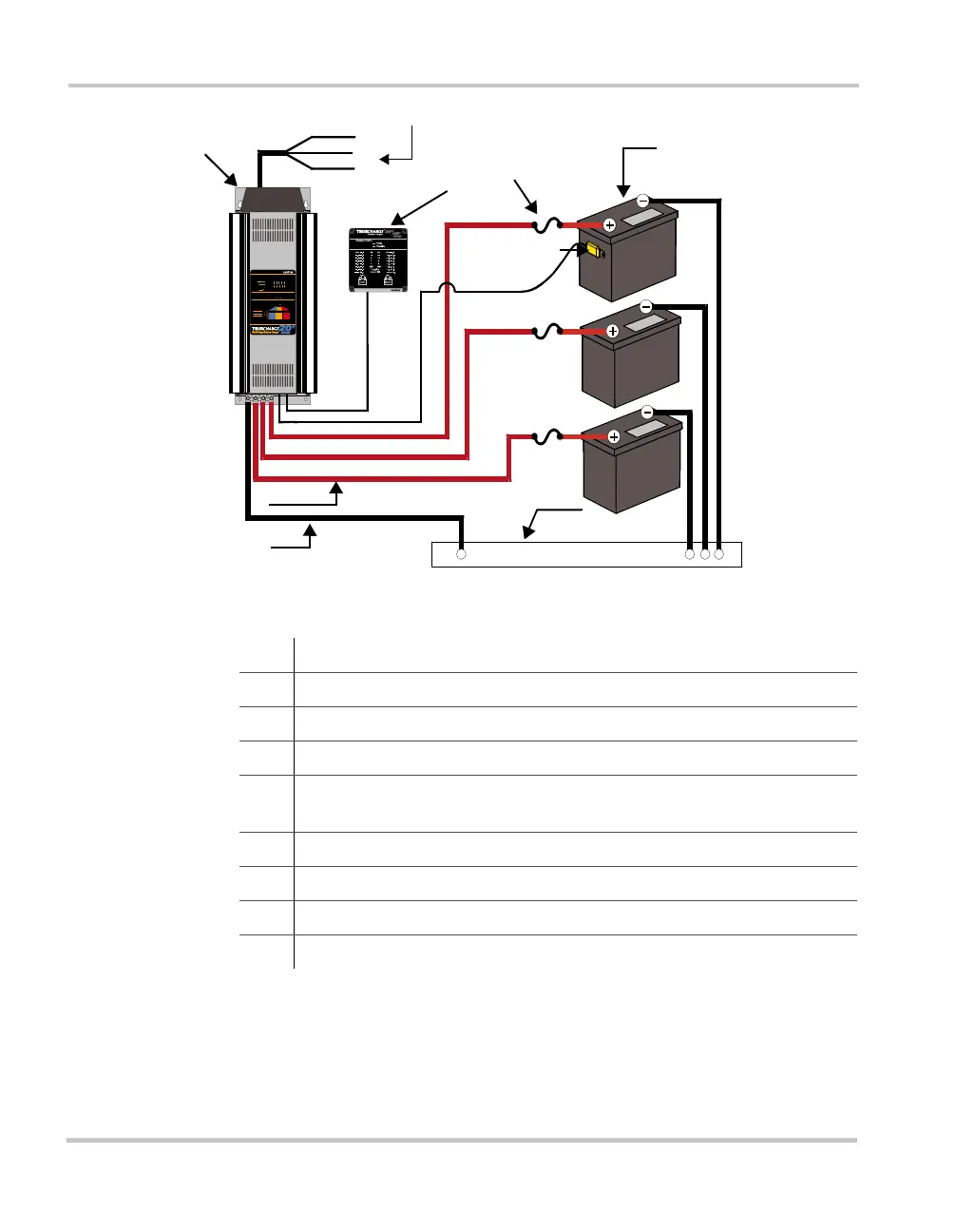

Figure 2-2 Truecharge+ system
13.8/13.4
Cold Warm Hot
14.4/13.514.0/13.1
14.2/13.8
Out put V olts
Abso rption / Flo at
Battery Type
Flooded
Gel
Equalize
Charging
Ready
Bulk/Absorption/Float 13.5V (fixed)
14. 6/14.2
TM
14.0/13.114.3/13.4
AGM
14. 6/13.7
14. 8/ 1 3 . 9
Bulk/Absorption
Battery Temperature
1 3 5 10 20
Status Charging Current ( A)
Charger Mode
2
3
4
5
6
7
8
9
1
L
N
G
1 120 VAC source with 15 amp breaker
2 AC input wiring compartment
3 DC negative cable
4 DC positive cables
5 DC circuit breaker or DC fuse and disconnect rated at 25 amps
maximum for TC 20+ or 50 amps maximum for the TC 40+
6 Battery or battery bank
7 Engine negative bus or DC ground bus
8 Remote panel (optional)
9 Battery temperature sensor (optional)
