Xblue Networks X16 Installation Guide

X16 Installation Guide
- 60 - Issue 2

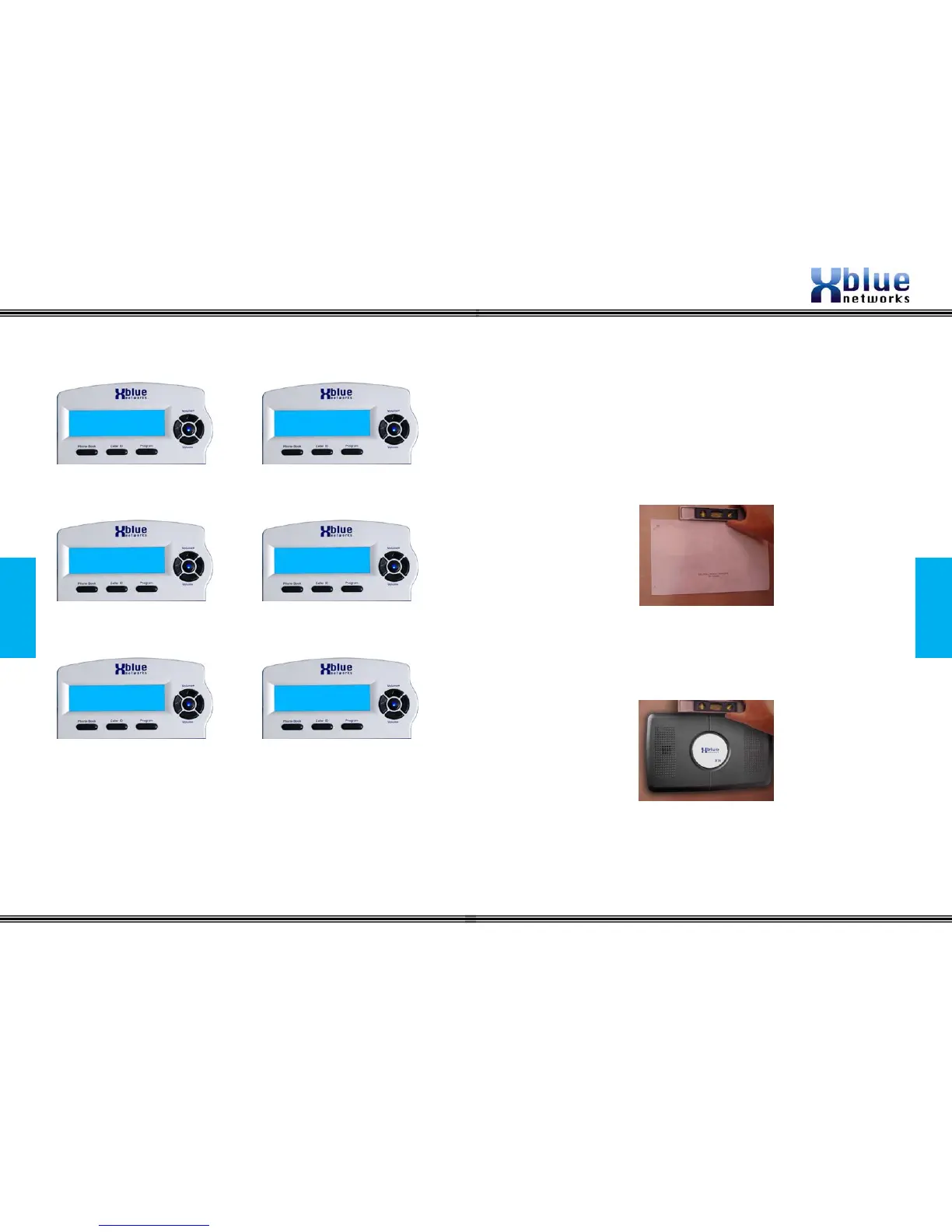

Idle LCD Display
Idle LCD Display
07:19P 10/12 FRI
Accounting 312
07:19P 10/12 FRI
New CID:24 312
07:19P 10/12 FRI
NEW VMSG:04 312
07:19P 10/12 FRI
TRK2TRK FWD 312
07:19P 10/12 FRI
External FWD 312
07:19P 10/12 FRI
Accounting DND
Time, Date, Day, Name and Number In DND Mode
4 New Voice Mail Messages
24 New Caller ID Calls
Trunk to Trunk Forwarding
External Forwarding
Issue 2 - 13 -
System
Configuration
Installation
Step 1 - Location
The X16 system should be located close to the telephone company
interface (RJ21X), and have a dedicated outlet with an isolated ground.
The system can be mounted on the wall or placed on a table. Once the
location of the system is determined use the supplied “System Wall
Mount Template” to level and the provided screws to secure the system
to the wall or place it on a table.
Do not tighten the screws all the way, leave about ¼ of an inch which
will be used to lineup the “snowmen” on the back of the system. Place
the X16 system over the screws and slide it into place.
