X16 Installation Guide
- 16 - Issue 2
System
Configuration

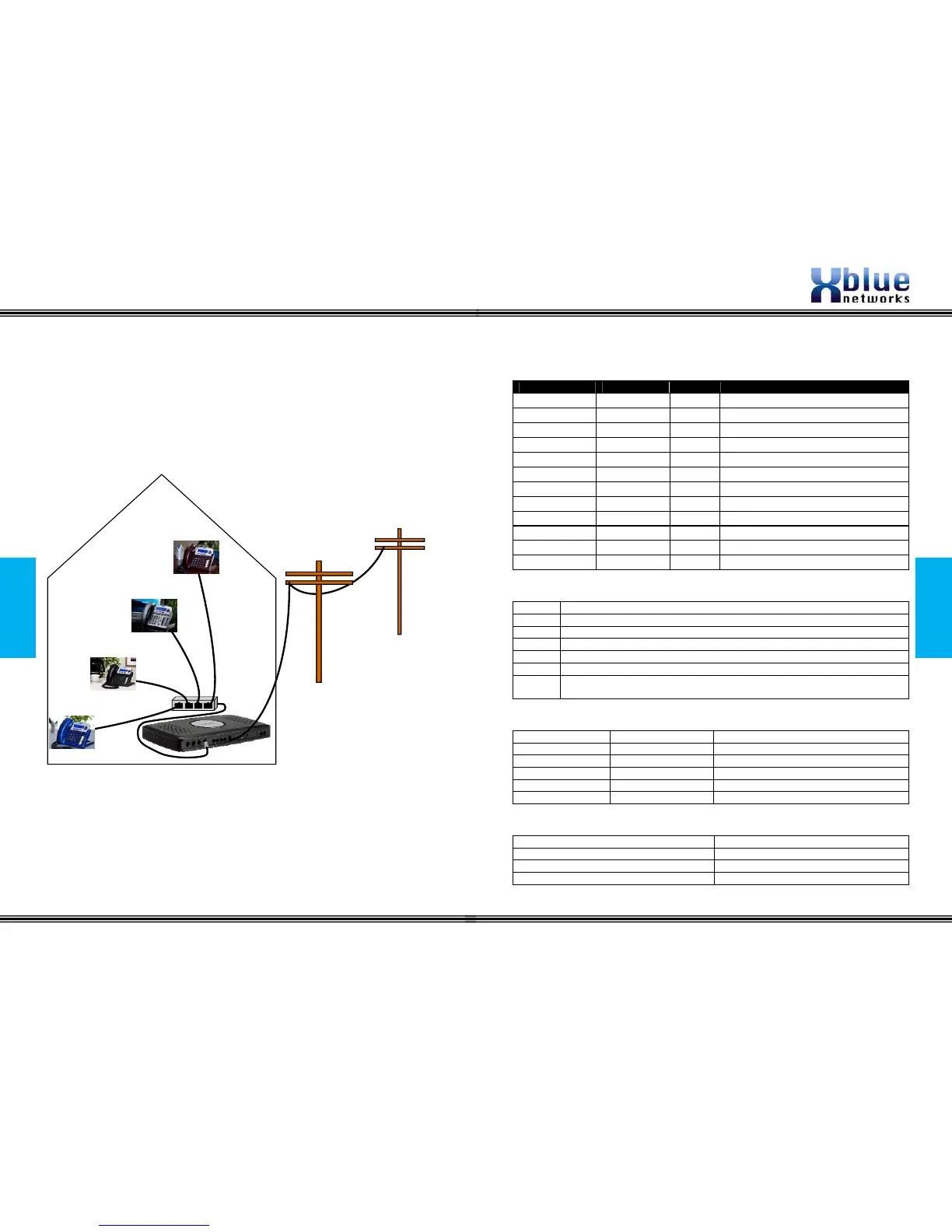

Home Run wiring, also known as star topology can be found in office
buildings and newer homes. In this wiring scheme each of the four X16
telephones are plugged into a “4 Telephone Connector”, which is then
connected into one of the ports on the X16 system.
In a star topology 600 feet is calculated by adding each Digital Telephone
endpoints cable run.
Cable A + Cable B + Cable C + Cable D <= 600 feet.
Issue 2 - 57 -
Functions
Functions
Features and LED function
Feature Code Descriptive LED lit LED Not Lit
Feature + 1
Record Active Not Recording
Feature + 2
Open N/A N/A
Feature + 3
Flash Key N/A N/A
Feature + 4
DND Active Not in DND
Feature + 5
Mute Active Not in Mute Mode
Feature + 6
Conference N/A N/A
Feature + 7
Pause N/A N/A
Feature + 8
Redial N/A N/A
Feature + 9
Headset Active Not Active
Feature + 0
All Page Active Not Active
Feature + *
Open N/A N/A
Feature + #
Open N/A N/A
Lamp (LED) Cadence
Unlit Off
Lit Lit Solid
Fast 0.125 sec off, 0.125 sec on, repeating
Slow 0.5 sec off, 0.5 sec on, repeating
Wink 1 0.250 sec off, 1.750 sec on repeating.
Wink 2 0.250 sec off, 0.250 sec on, 0.250 sec off, 1.25 sec on repeating
Wink 3 0.250 sec off, 0.250 sec on, 0.250 sec off, 0.250 sec on, 0.250 sec off, 0.750
sec on, repeating.
Lamp (LED)s on Phone
CO Line Status My Station Other Stations
Idle Unlit Unlit
In-Use Lit Green (I-Use) Lit Blue (In-Use)
On Hold Slow Green (I-Hold) Lit Blue (In-Hold)
Ringing Fast Blue Fast Blue
Being Transferred Slow Green (I-Hold) Lit blue (I-Hold and Transfer)
Intercom Tone cadences
Dial Tone Continuous Tone
Busy Tone 0.5 sec on, 0.5 sec off, repeating
Ring Tone 1 sec on, 1 sec off, repeating
DND Tone 0.25 sec on, 0.25 sec off, repeating
