X16 Installation Guide
- 18 - Issue 2
Endpoint Device

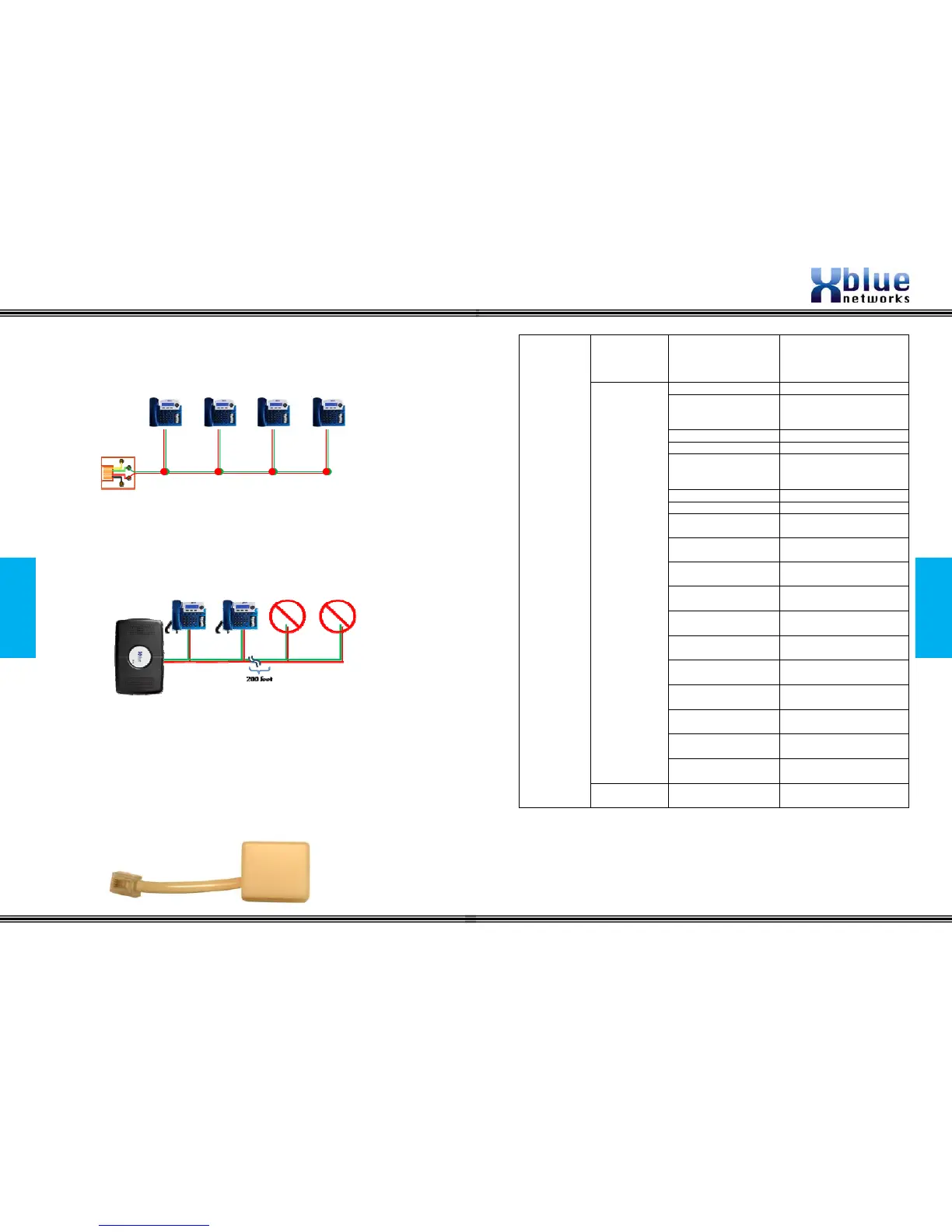

Leaving any ports punched down but not connected to a telephone, may
result in erratic operation.
Correct Installation process
It is important to connect a telephone to every jack that is connected to
the system. Extensions connected to a cable with “Bridge Taps”, may
experience distortion. If locating a bridge tap is not practical, a quick
resolution is to use a different cable pair such as the Yellow/Black or
White/Orange.
Note:
There should not be any unconnected telephones at the end of a
cable run that is over 200 feet.
Endpoint Device
Every live telephone jack connected to the system will receive a data signal. If
the system finds an open jack (bridge tap) the data signal may be lost, causing
the remaining digital telephone endpoints to receive erroneous data, which may
lead to improper operation. Therefore, for proper operation each live telephone
jack at the end of a cable run, connected to the system, must have either a
digital telephone endpoint or an endpoint device. Symptoms of an open jack
include – but not limited to - voice distortion, static and slow speakerphone
reaction when the button is pressed, problems accessing CO Lines, etc.
Issue 2 - 55 -
Programming Guide
Mail System Clear All VMSG Yes?/No?
Auto Attend Ring All Ext Off
All Ext On
AA Only
Attendant Extension 301 Ext
AA Answer Delay 06~240 seconds
Message Length Unlimited
Greeting
1 Minutes
Day Time 09:00 A
Night Time 06:00 P
Day Time OGM
(Outgoing Msg)
Play/Re-record
Night Time OGM
(Outgoing Msg )
Play/Re-record
AUX OGM
(Outgoing Msg)
Play/Re-record
Weekend Mode On/Off
Weekend Start Fri, 06:00 PM
Weekend End Mon, 09:00 AM
Weekend OGM Play/Re-record
Holiday Mode On/Off
Holiday Start 2009, 4/30, 06:00 PM
Holiday End 2009, 05/02, 09:00 AM
Holiday OGM Play/Re-record
Reset KSU Yes?/No?
To Next Page
