DocuTech 128/155/180 HighLight Color Operator Guide 3-55
Routine maintenance

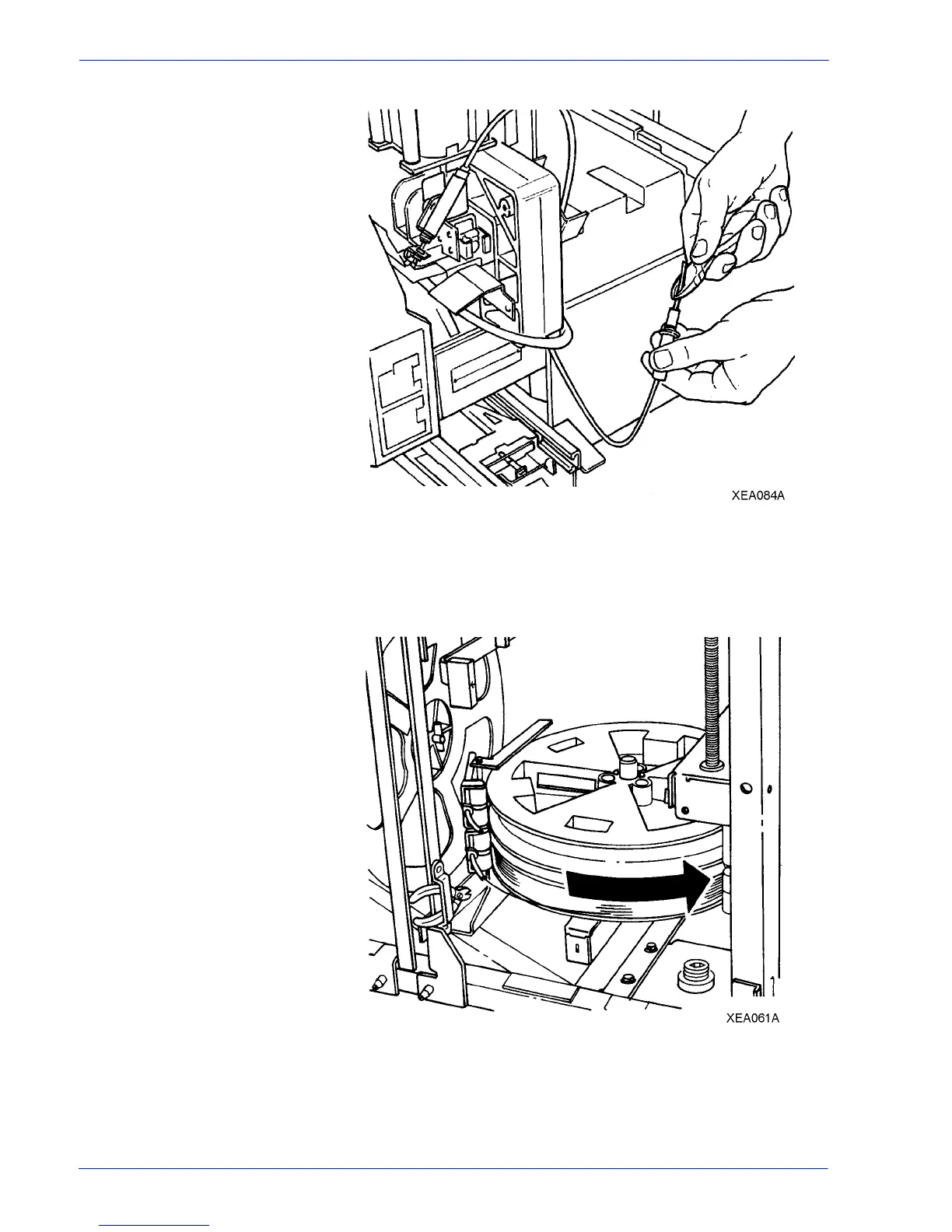

Figure 3-53 Removing the wire from the tubing
• If there is wire on the spool, hold it on the spool and
carefully rewind the remaining wire out of the tubing and
onto the stitcher spool, as shown in figure 3-54.
Figure 3-54 Rewinding the remaining wire
6. Insert the plug into the measuring bracket, as shown in figure
3-55.
