Routine maintenance
4. Place a dry cleaning pad on the sensor and move it from left to
right to clean the sensor.
5. Lower the Area 4 green handle.
6. Close the printer doors.
Cleaning the Q1011/1009 sensor and mirror
1. Open the right and left doors of the printer and locate the
Q1011/1009 sensor.

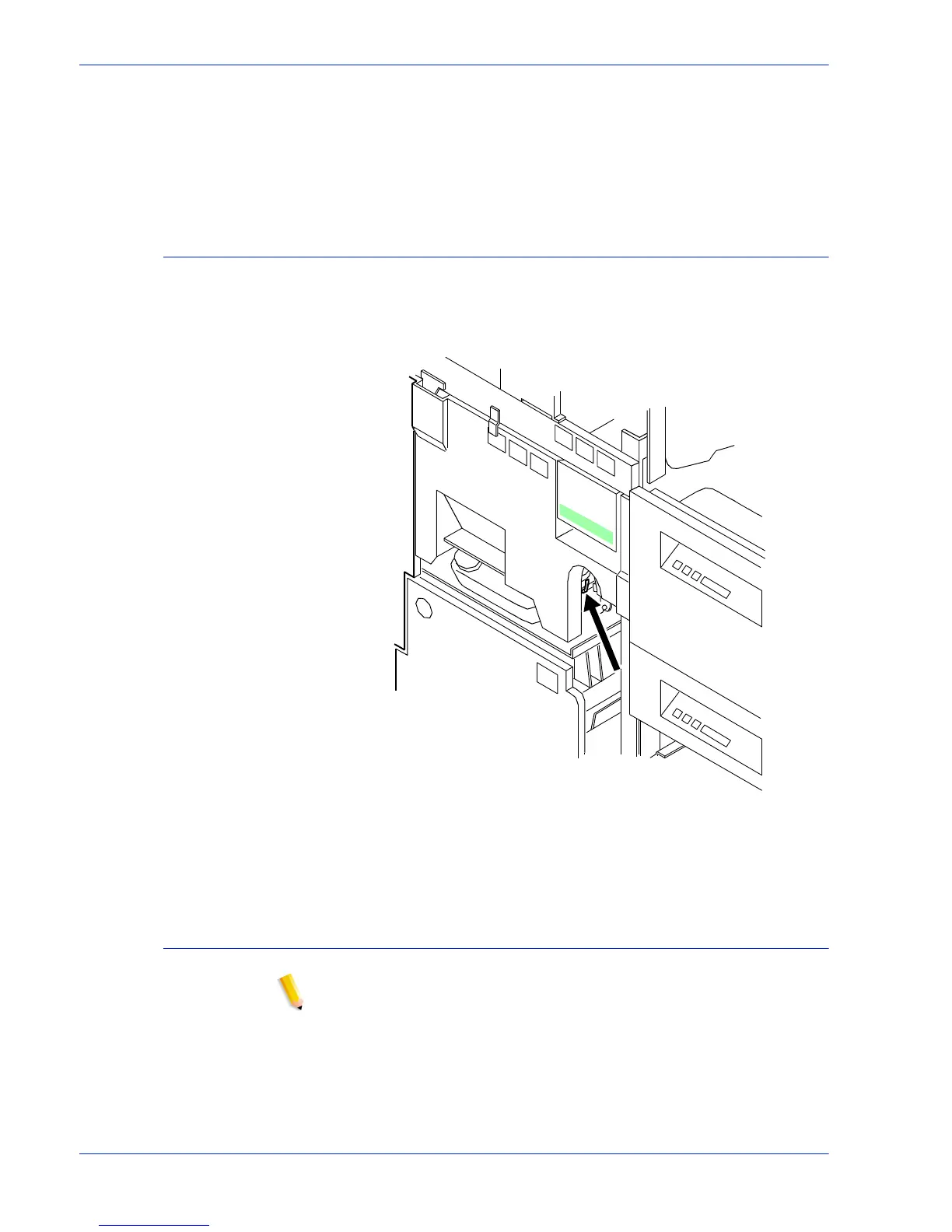

Figure 3-32 Q1011/1009 sensor and mirror
2. Apply a small amount of lens and mirror cleaner to a cleaning
pad.
3. Wipe the sensor gently with the cleaning pad.
Cleaning the Q1106 and Q1166 sensors
NOTE: High volume printer configuration only
To access sensors Q1106 and Q1166, open the top cover of the
high capacity stacker.
To clean the sensors:
1. Brush or wipe the sensor windows lightly.
2. Remove any dust present in the area.
