DocuTech 128/155/180 HighLight Color Operator Guide 3-43
Routine maintenance
Cleaning the Q1222 and Q1210 sensors
NOTE: Production publisher configuration only
Cleaning the Q1222 and the Q1210 sensors should be performed
only when directed by a Customer Support Center
Representative.
1. Open the finisher top cover.
2. Look down at the rear section of the tilt bed area, as shown in
figure 3-40, to view the sensors.

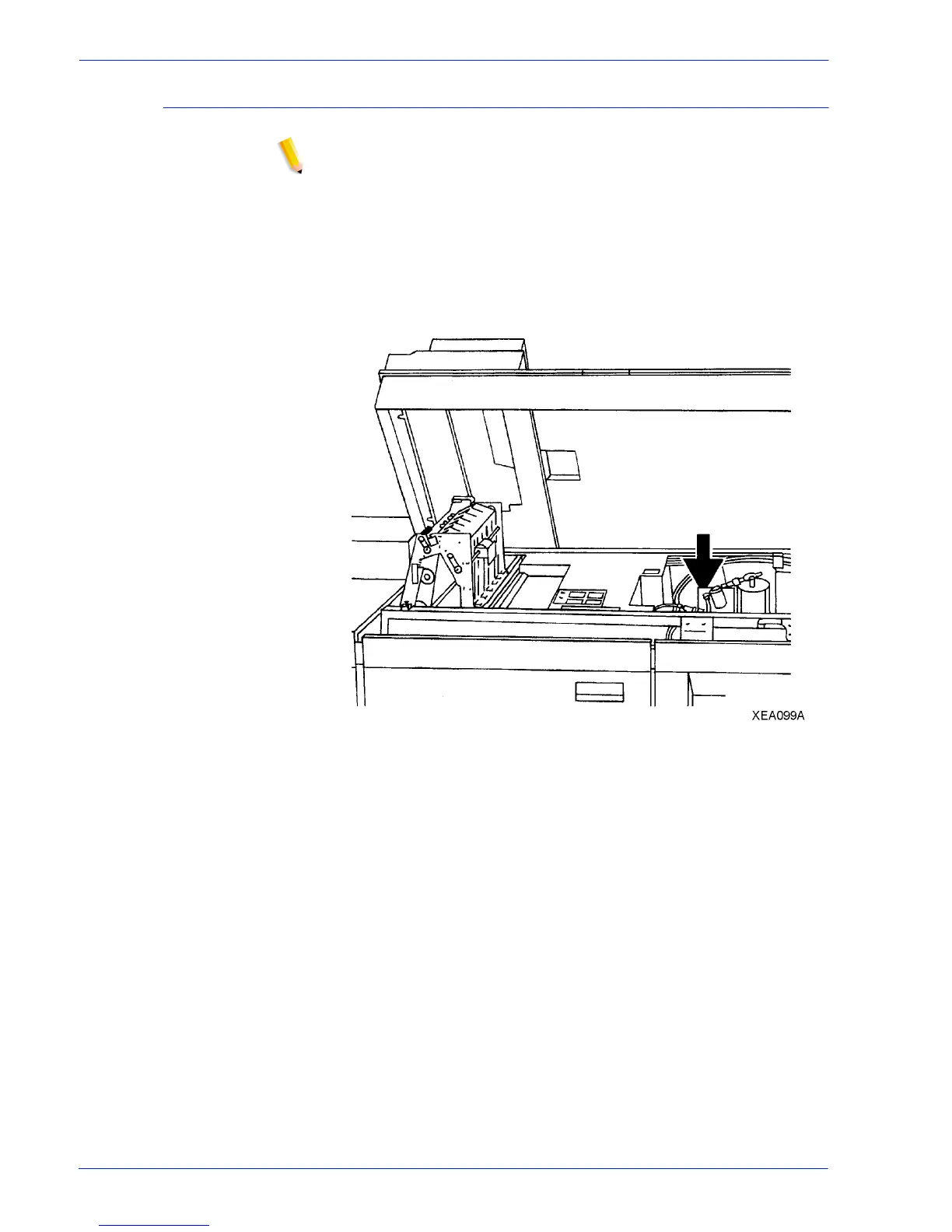

Figure 3-40 Locating the Q1222 and Q1210 sensors
3. Locate the Q1222 and Q1210 sensors, as shown in figure 3-
41
