3-42 DocuTech 128/155/180 HighLight Color Operator Guide
Routine maintenance

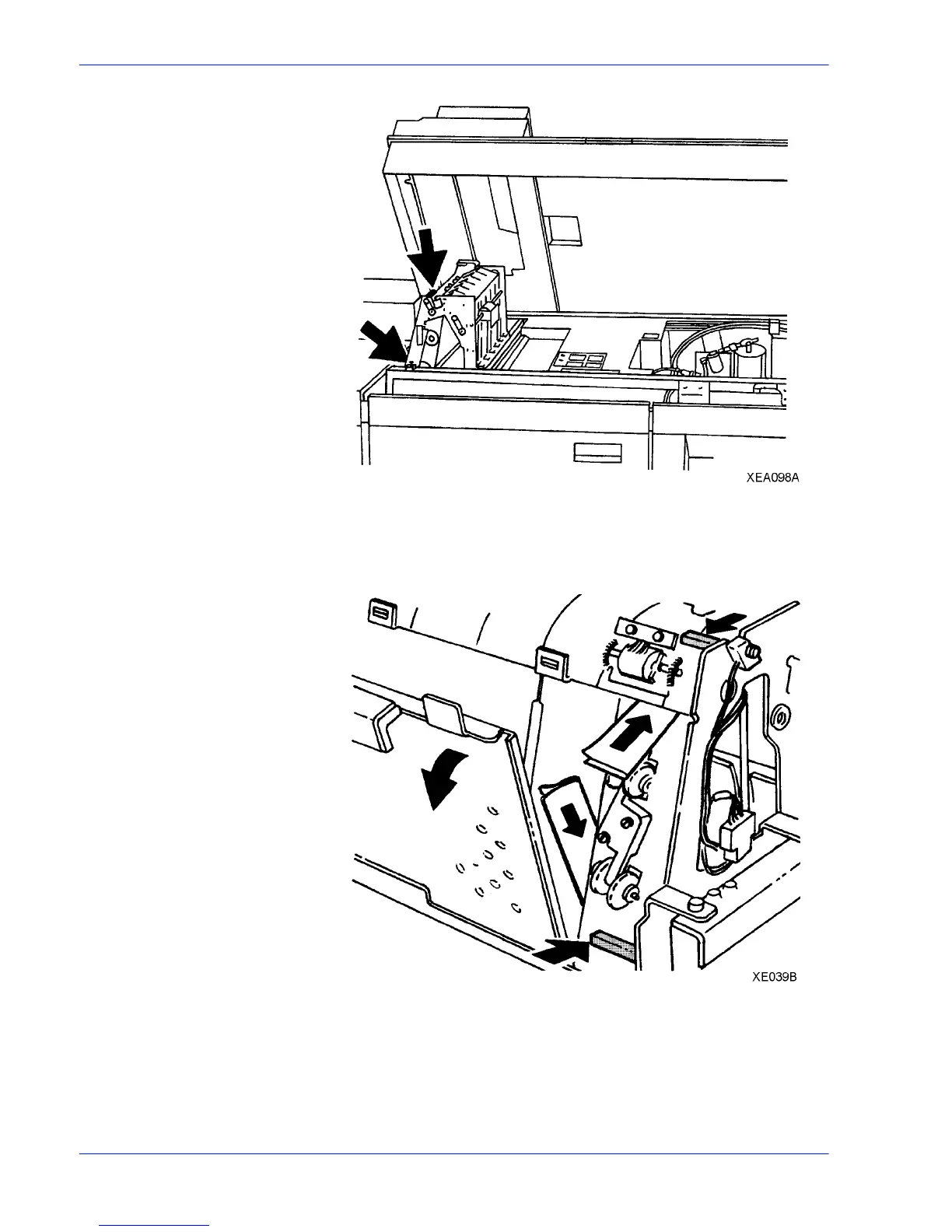

Figure 3-38 Locating the Q1202 and Q1203 sensors
3. Brush a folded sheet of paper under each sensor to clear any
obstructions, as shown in figure 3-39.
Figure 3-39 Clearing the Q1202 and Q1203 sensors
4. Close the finisher top cover.
