3-64 DocuTech 128/155/180 HighLight Color Operator Guide
Routine maintenance

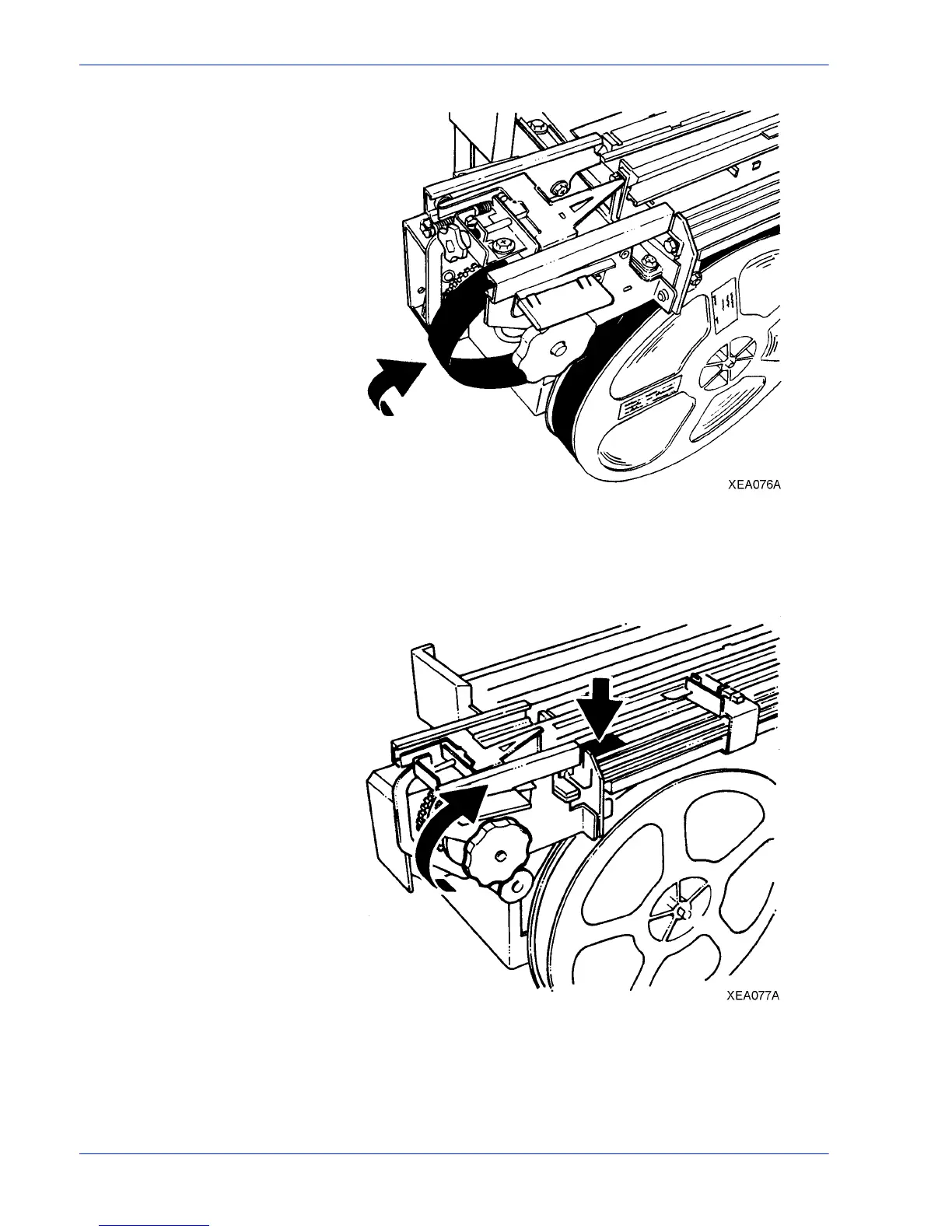

Figure 3-67 Threading the tape to the pressure roll
8. Turn the green knob clockwise until the tape extends at least 2
inches (51mm) beyond the tape guides.
Figure 3-68 Feeding the tape manually
9. Cut the tape.
a. Lift up on the green tape cutter handle, as shown in figure
3-69.
