DocuTech 128/155/180 HighLight Color Operator Guide 3-67
Routine maintenance

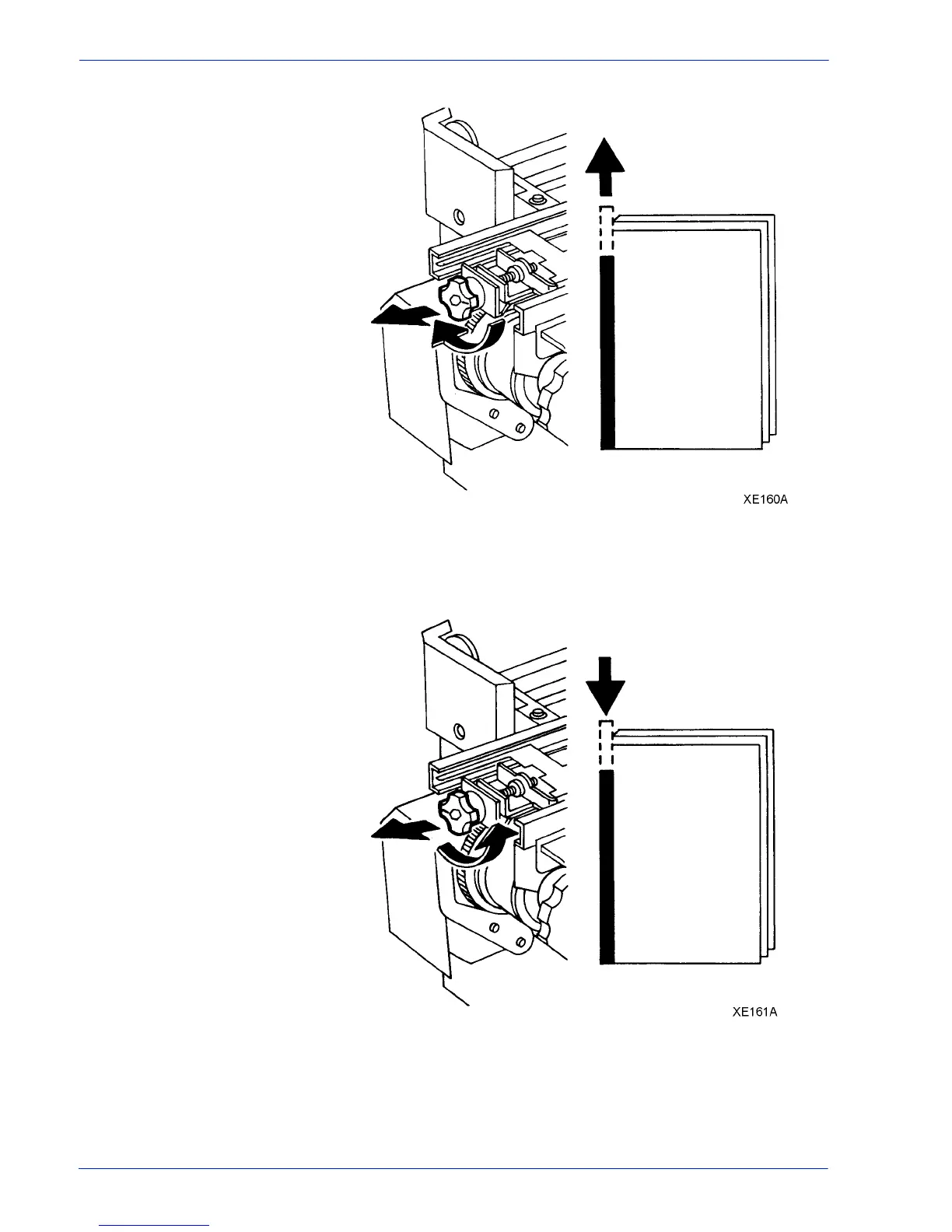

Figure 3-71 Adjusting the tape position up
• Pull the knob and rotate it counterclockwise to move the
tape toward the bottom edge of the book.
Figure 3-72 Adjusting the tape position down
8. Close the finisher doors.
9. Run a test binder job to check your adjustment.
10. Perform the procedure again as needed.
