4-28 DocuTech 128/155/180 HighLight Color Operator Guide
Problem Solving

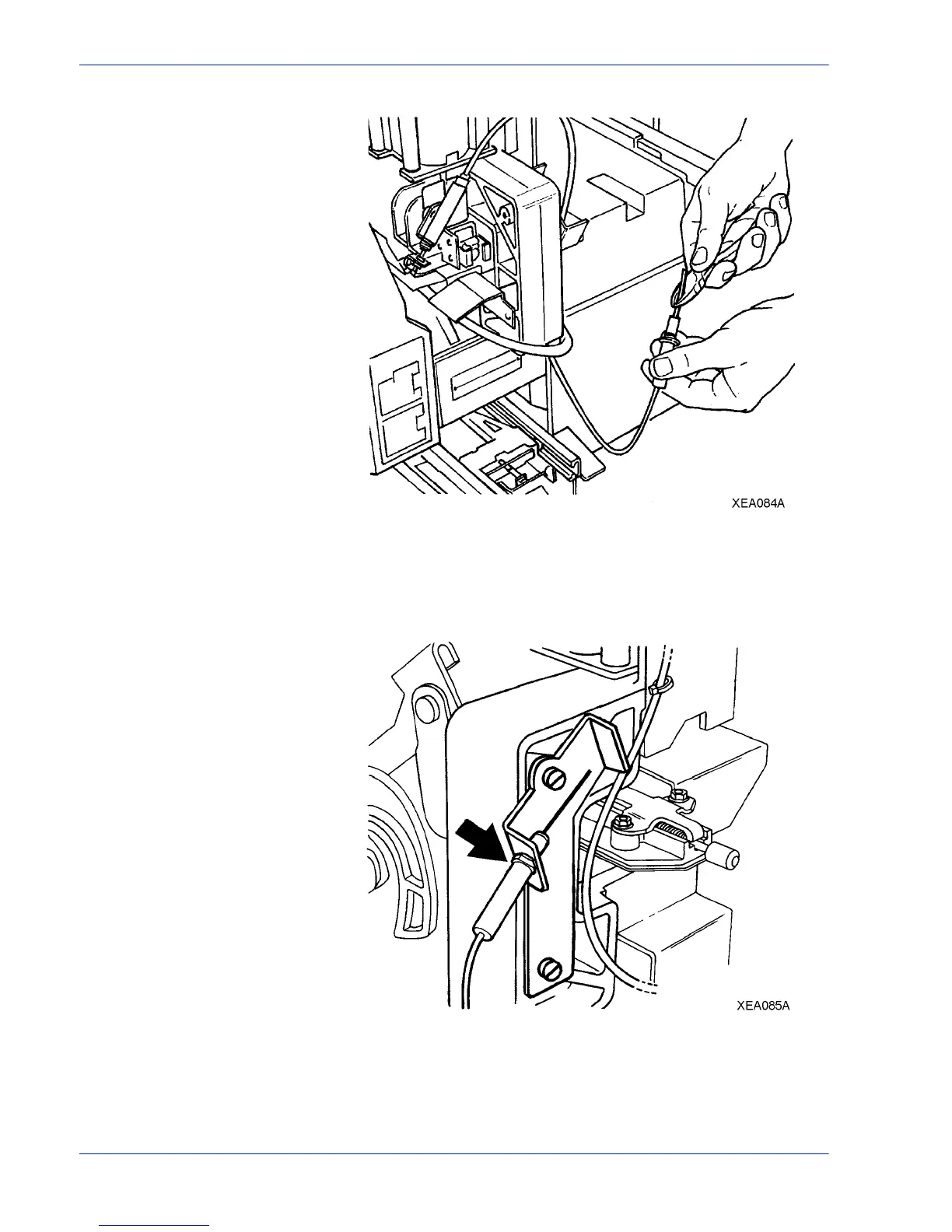

Figure 4-25 Cutting the wire
7. Insert the plug into the measuring bracket, as shown in figure
4-26.
Figure 4-26 The measuring bracket
8. Feed the wire until the wire touches the back of the measuring
bracket.
9. Remove any stitcher wire fragments.
