Xerox DocuMate 252 User Manual

Scanning with the TWAIN Interface from PaperPort
96 DocuMate 252 Scanner User’s Guide

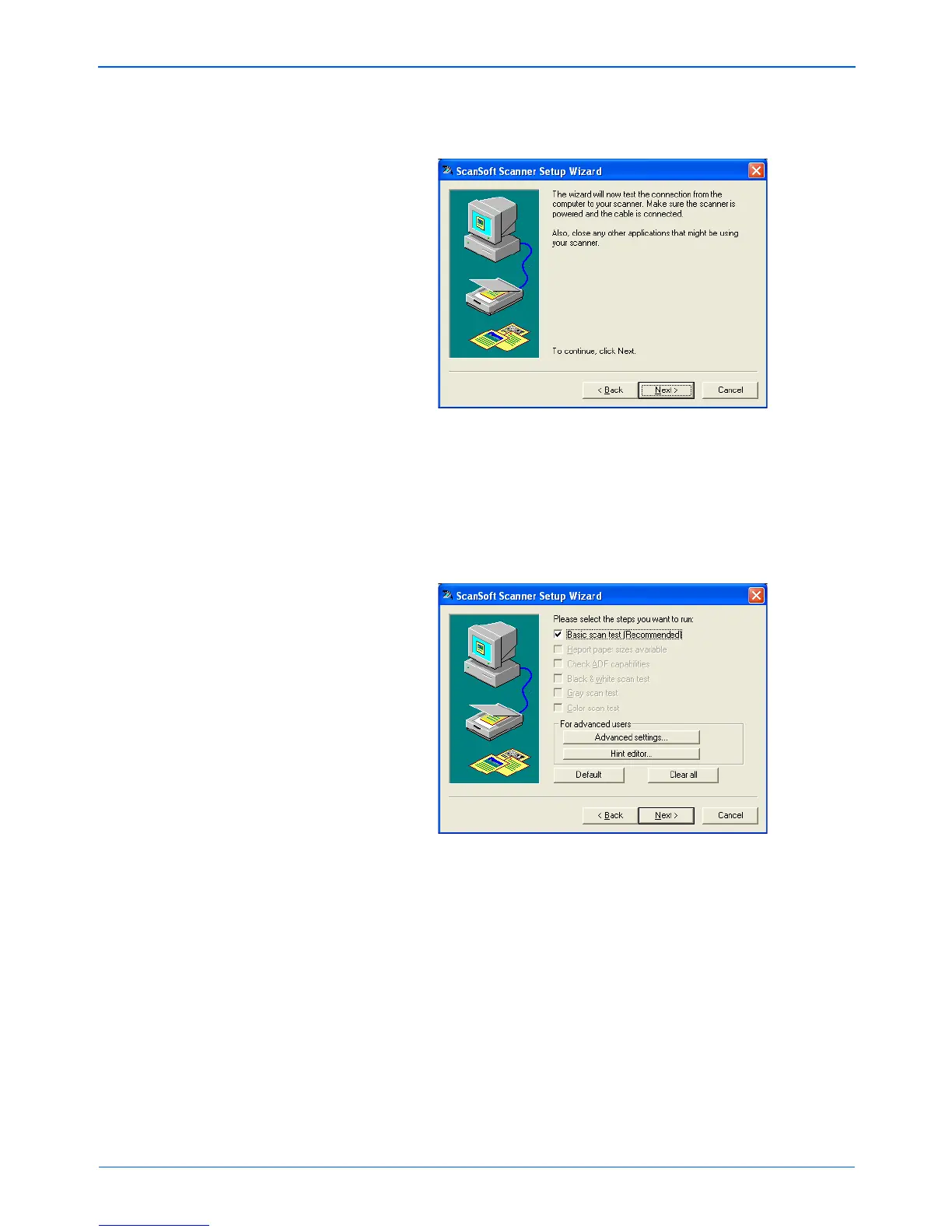

The next window is for checking the connection between your
scanner and the computer.
5. Click Next.
After the Setup Wizard checks the connections, the next
window is displayed. It has a series of setup options, but only
the Basic scan test is necessary because your scanner was
already tested and calibrated when you installed the One
Touch 4.0 software
6. Click Next.

Xerox DocuMate 252 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	48 bit
Maximum scan size	215 x 355 mm
Optical scanning resolution	600 x 1200 DPI
Scanner type	Sheet-fed scanner
Sensor type	CCD
Dimensions (WxDxH)	330 x 310 x 150 mm
Minimum system requirements	- Pentium II - Windows 2000/ME/XP - 128MB of RAM - 200MB hard disk space - CD-ROM - USB
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	3900 g
