EXPLODED VIEWS AND PARTS LIST
Service Manual

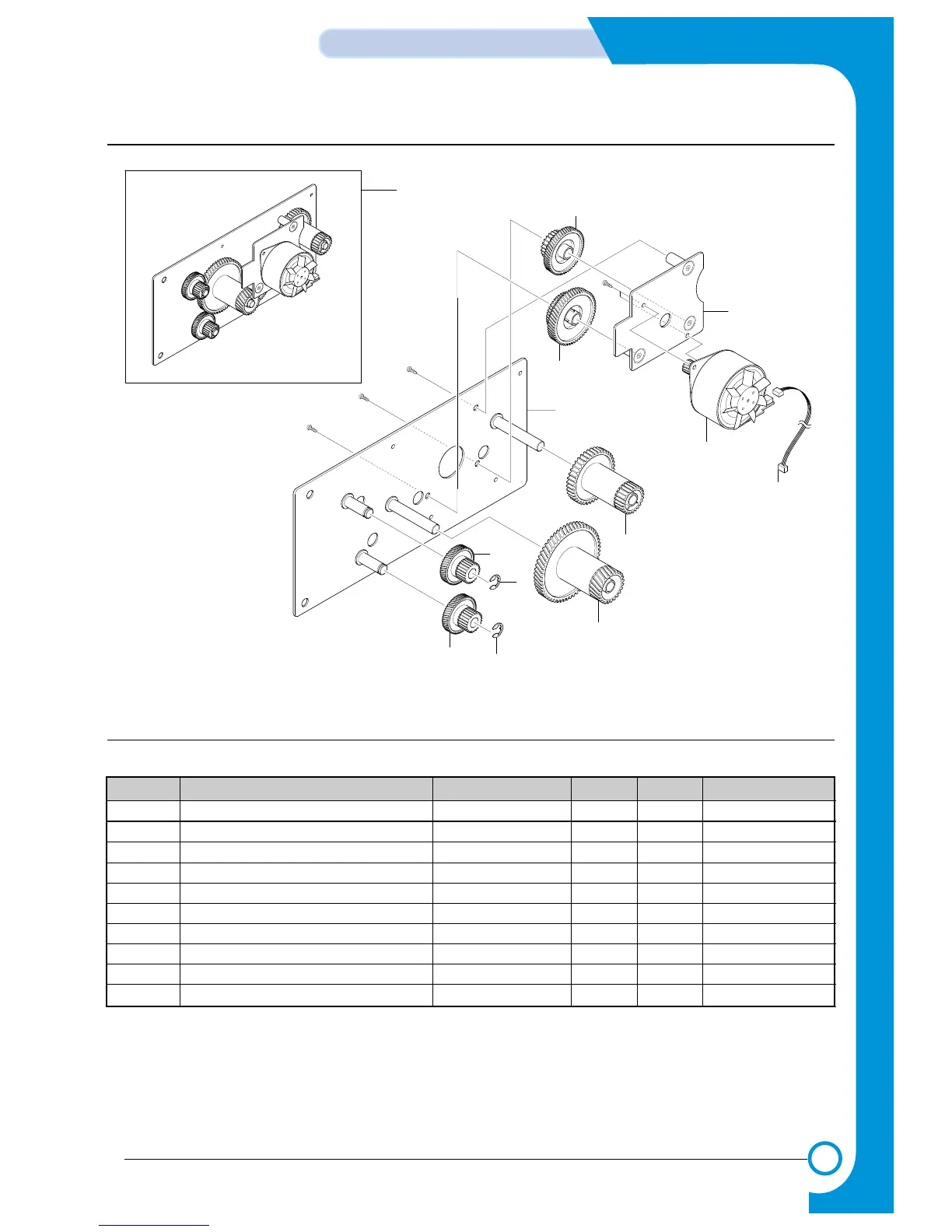

5.3 Driver Unit Exploded view
0
1
2
3
4
4
5
6
7
8
9
HARNESS-MOTOR
5
< Driver Unit Parts List >
SA. : Service Available
O: Service available X: Service not available
NO DESCRIPTION SEC CODE Q’TY SA REMARK
0 ELA HOU-RX DRIVE 1400 JC96-02733A 1 O
1 BRACKET-GEAR 1400 JC61-00598A 1 X
2 GEAR-FUSER DRV JC66-00388A 1 X
3 GEAR-RDCN Z132/19 JC66-00391A 1 X
4 GEAR-PICK_UP DRV JC66-00389A 2 X
5 RING-E 6044-000231 2 X
6 BRACKET-MOTOR 1400 JC61-00599A 1 X
7 GEAR-RDCN Z7128 JC66-00390A 1 X
8 GEAR-RDCN Z7322 JC66-00392A 1 X
9 MOTOR STEP-7.5 JC31-00028A 1 X
