Xerox PHASER 6010 User Manual

Troubleshooting
Phaser 6000/6010 Color Printer
User Guide
51

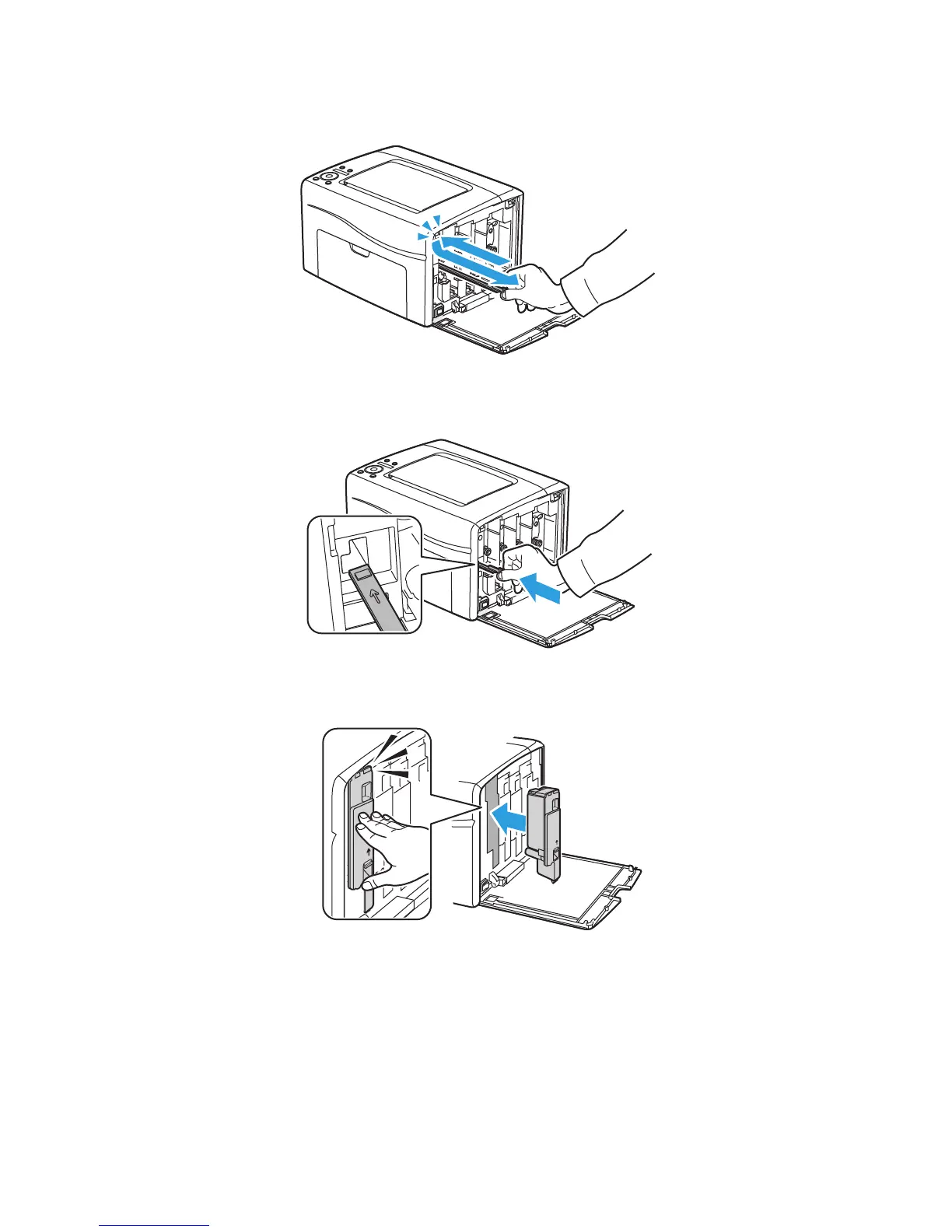

8. Push the cleaning rod into the printer until it stops, then pull it out of the printer.
9. Repeat the same procedure for each of the other three holes.
10. Return the cleaning rod to the original location.
11. Align the toner cartridge to the associated slot by aligning the geared post with the hole. Insert the
cartridge firmly by pressing in on the center of the label until it clicks in place.
12. Insert each of the other three toner cartridges.
13. Close the toner access cover.
p60xx_008
p60xx_009
p60xx_010

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
