Xerox Phaser 6700 - Sm2

9-14 Xerox Internal Use Only Phaser 6700 Printer Service Manual

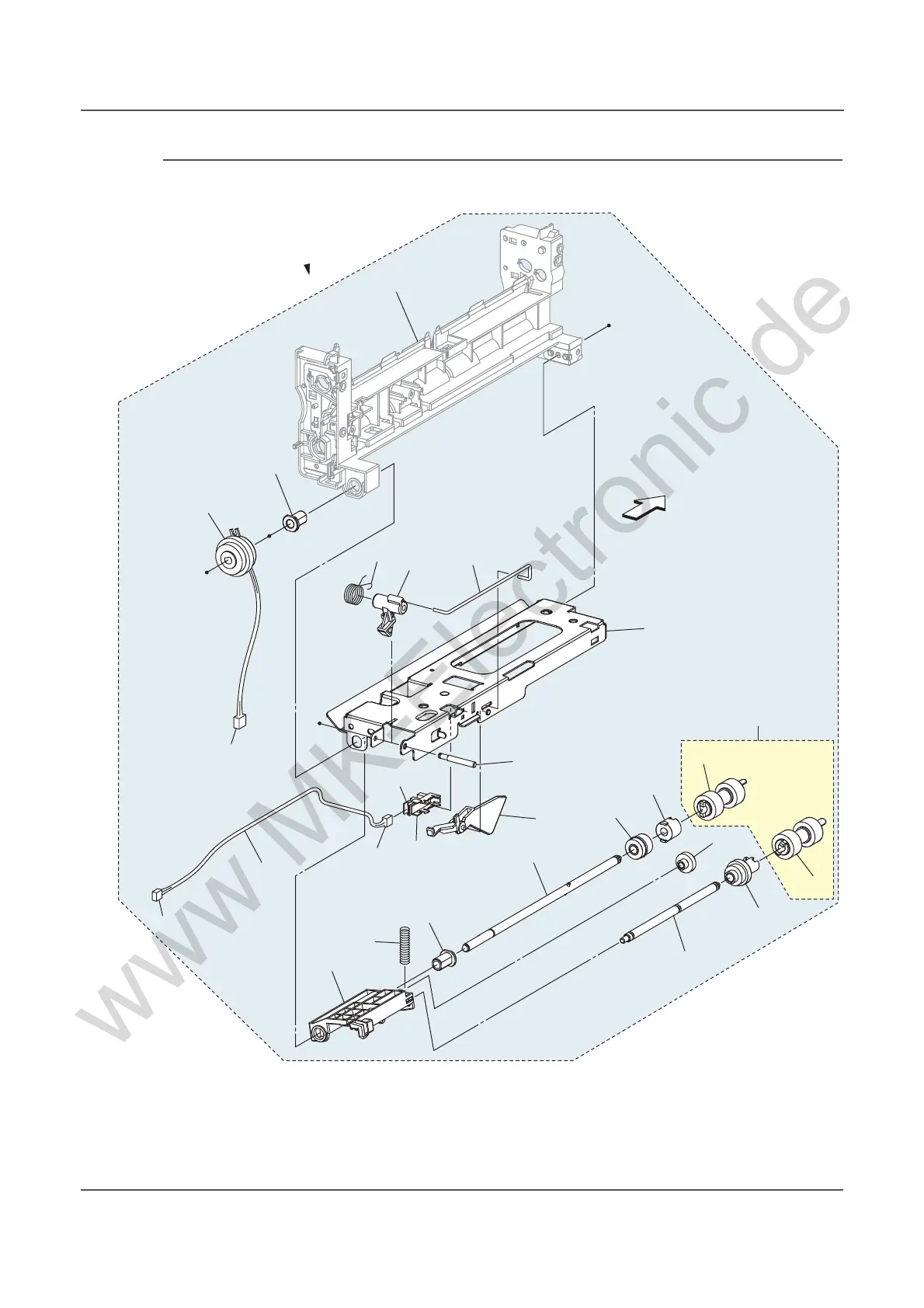

Parts List 3.2 Feeder/Registration Assembly (2/3)
s6700-105
E2
E2
E5
SM2
Front
(P220)
(J220)
(J110)
11
12
13
3
15
14
Tray No Paper
Sensor
(J102)
2
3
4
1 (with 2-7,9-21, PL3.3.1)
[Ref PL3.3.17]
5
6
7
9
10
21
16
17
18
20
18
19
[Ref PL2.1.99]
