Troubleshooting
Phaser 7800 Color Printer 139
User Guide

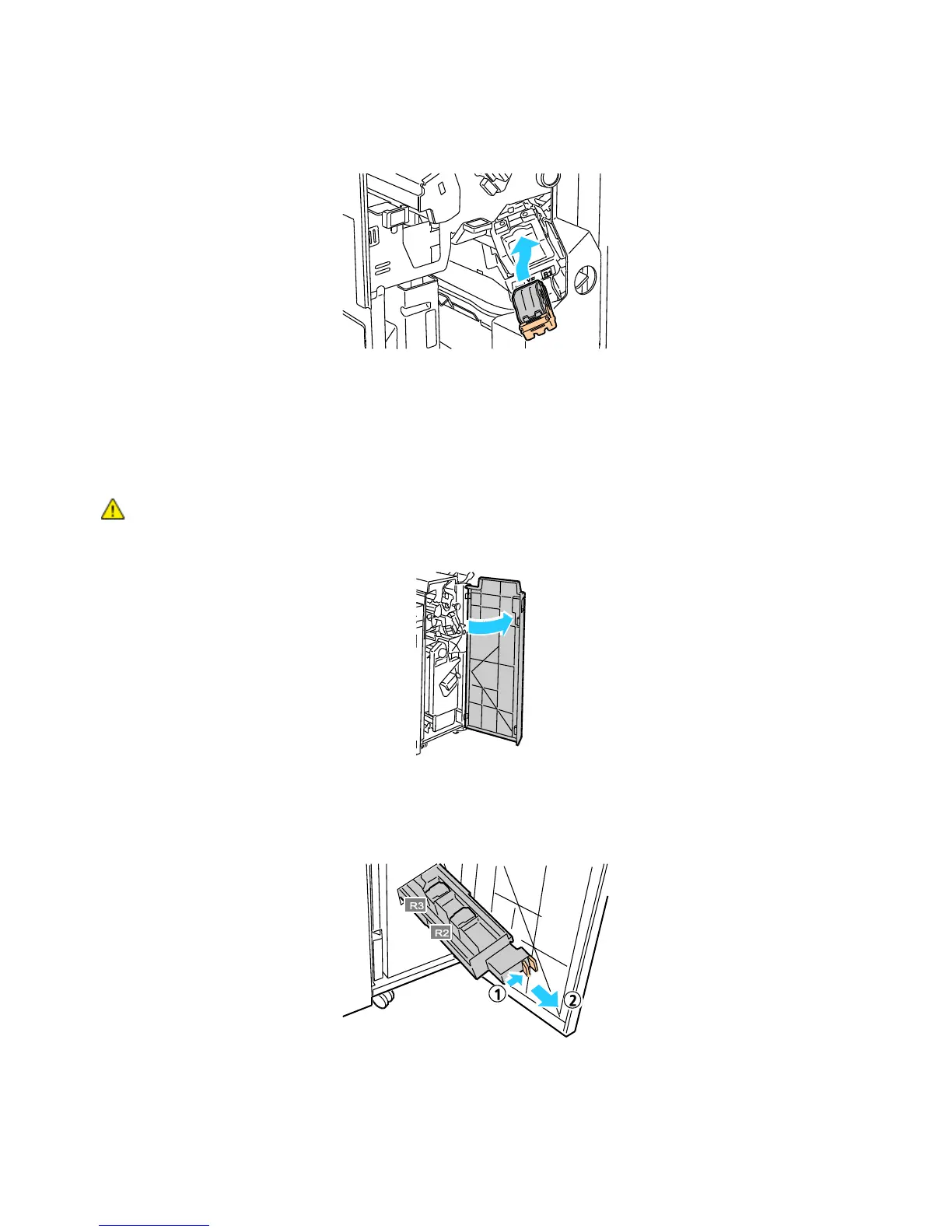

7. Grip the staple cartridge by the orange handle and insert it into the stapler assembly. Push it in until
it clicks.
8. Close the finisher front door.
Clearing Booklet Staple Jams in the Professional Finisher
The stapler in the booklet maker uses two staple cartridges labeled R2 and R3. Booklet stapling requires
that both staple cartridges be free of jammed staples.
WARNING: Do not perform this procedure while the printer is printing.
1. Open the finisher front door.
2. While squeezing the orange levers R2 and R3 together (1), pull the stapler assembly out of the
finisher until it stops (2).
Note: The stapler assembly does not detach from the finisher.
