Parts of the Printer

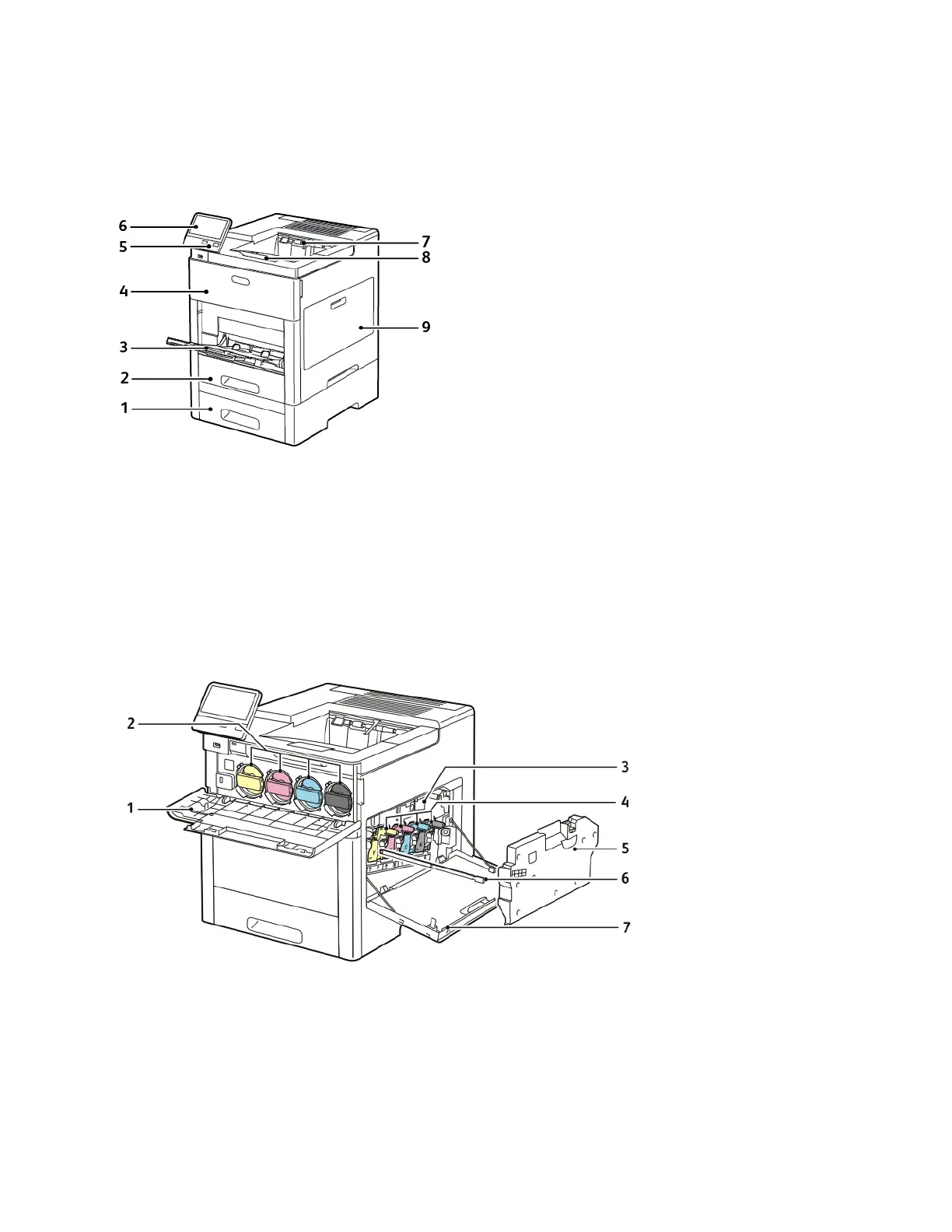

FFrroonntt VViieeww
1. Tray 2, Optional 550-Sheet Feeder
2. Tray 1
3. Bypass Tray
4. Front Door
5. Power/Wake Button
6. Control Panel
7. Output Tray
8. Output Tray Extension
9. Right-Side Door
IInntteerrnnaall PPaarrttss
1. Front Door
2. Toner Cartridges
3. Transfer Belt
4. Drum Cartridges
5. Waste Cartridge
6. Cleaning Rod
7. Right-Side Door
