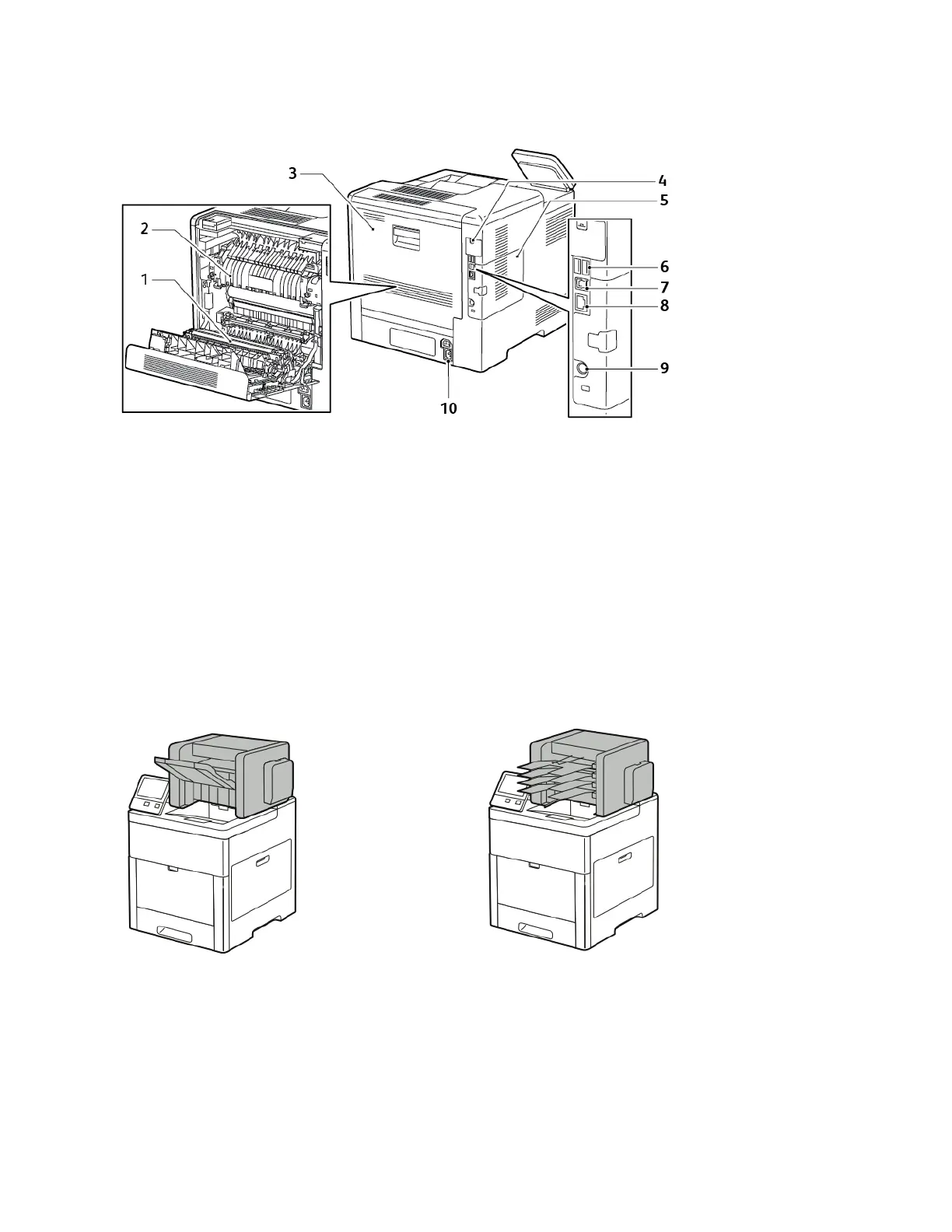

RReeaarr VViieeww
1. Transfer Roller
2. Fuser
3. Rear Door
4. Wireless Network Adapter Port Cover
5. Left-Side Cover, Access to optional
Productivity Kit
6. USB Port Type A
7. USB Port Type A
8. Ethernet Connection
9. FDI Port
10. Power Connector
OOppttiioonnss
Finisher Mailbox
CCoonnttrrooll PPaanneell
The control panel consists of a touch screen and buttons you press to control the functions available
on the printer. The control panel:
Xerox
®
VersaLink
®
C500 Color Printer
User Guide
21
Getting Started
