Parts of the Printer
This section includes:
• Front View ........................................................................................................................................................................... 20
• Rear View ............................................................................................................................................................................ 21
• Internal Parts ..................................................................................................................................................................... 22
• Control Panel ..................................................................................................................................................................... 23

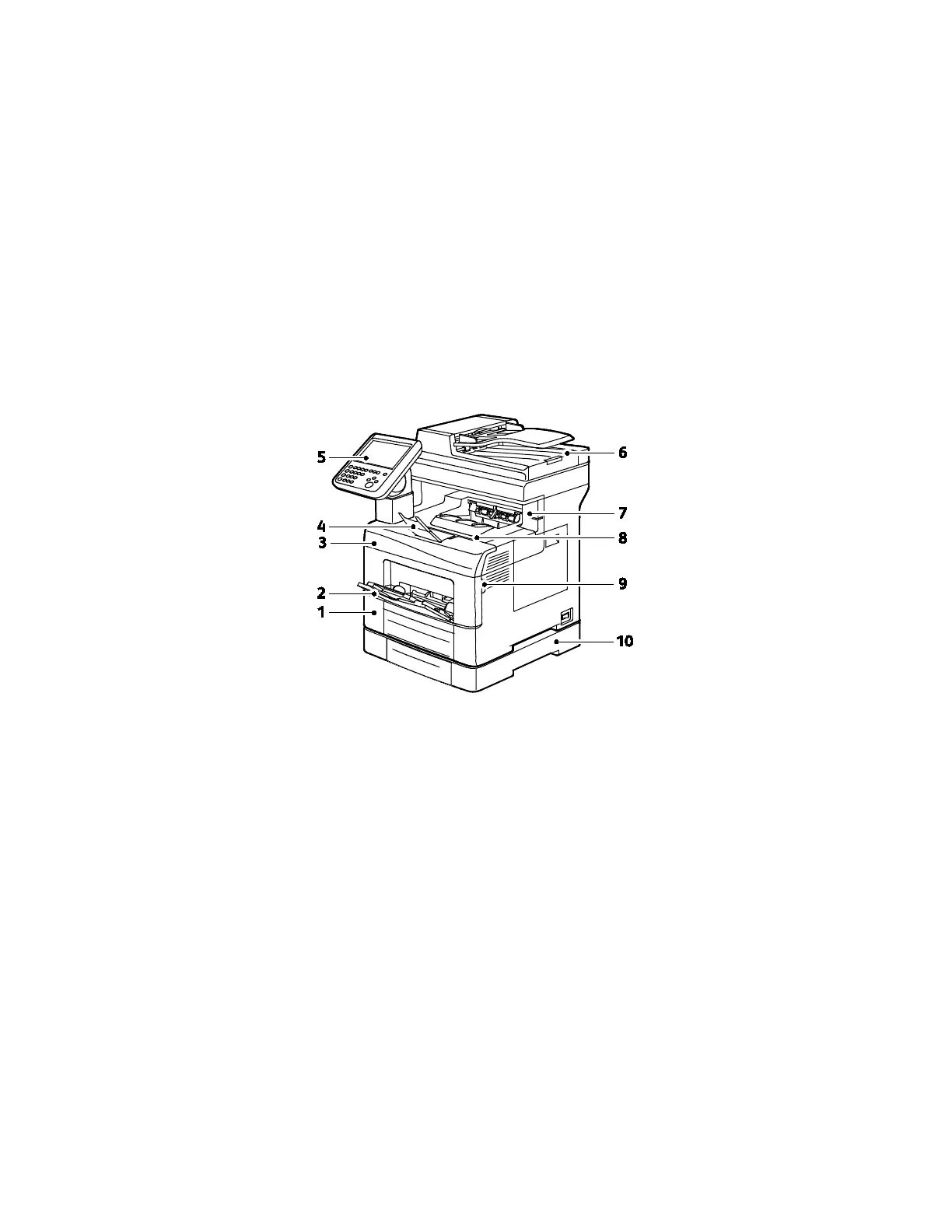

Front View
1. Tray 1
2. Bypass Tray
3. Front Door
4. Output Tray Paper Stop
5. Control Panel
6. Duplex Automatic Document Feeder
7. Staple Cartridge Door
8. Output Tray
9. Front Door Handle
10. Optional 550-Sheet Feeder
