xFusion Digital Technologies FusionServer 1288H V7

5.5.1.4 10 x 2.5" Drive NVMe Configuration
Drive Configuration
Table 5-17 Drive Configuration
Configuration Front Drive Rear Drive Drive
Management
Mode
10 x 2.5" Drive
NVMe
Configuration
● Front drive (10
x 2.5"):
– Slots 0 to 9
support
SAS/SATA/
NVMe
drives.
-
● SAS/SATA
drive: 1 x PCIe
RAID controller
card
The PCIe RAID
controller card
is installed in
slot 1 by
default.
● NVMe drive:
CPU pass-
through
For details about the optional components, consult the local sales representative or
see "OS and Parts Compatibility" in the Compatibility Checker.
Drive Numbering
NO TICE
The drive numbers identified by the RAID controller card vary depending on the
cabling of the RAID controller card. This section uses the drive numbers identified by
a RAID controller card that adopts the default cabling described in "Internal Cabling"
in the FusionServer 1288H V7 Server Maintenance and Service Guide.
● Drive numbers of the 10 x 2.5" drive NVMe configuration in Table 5-17.

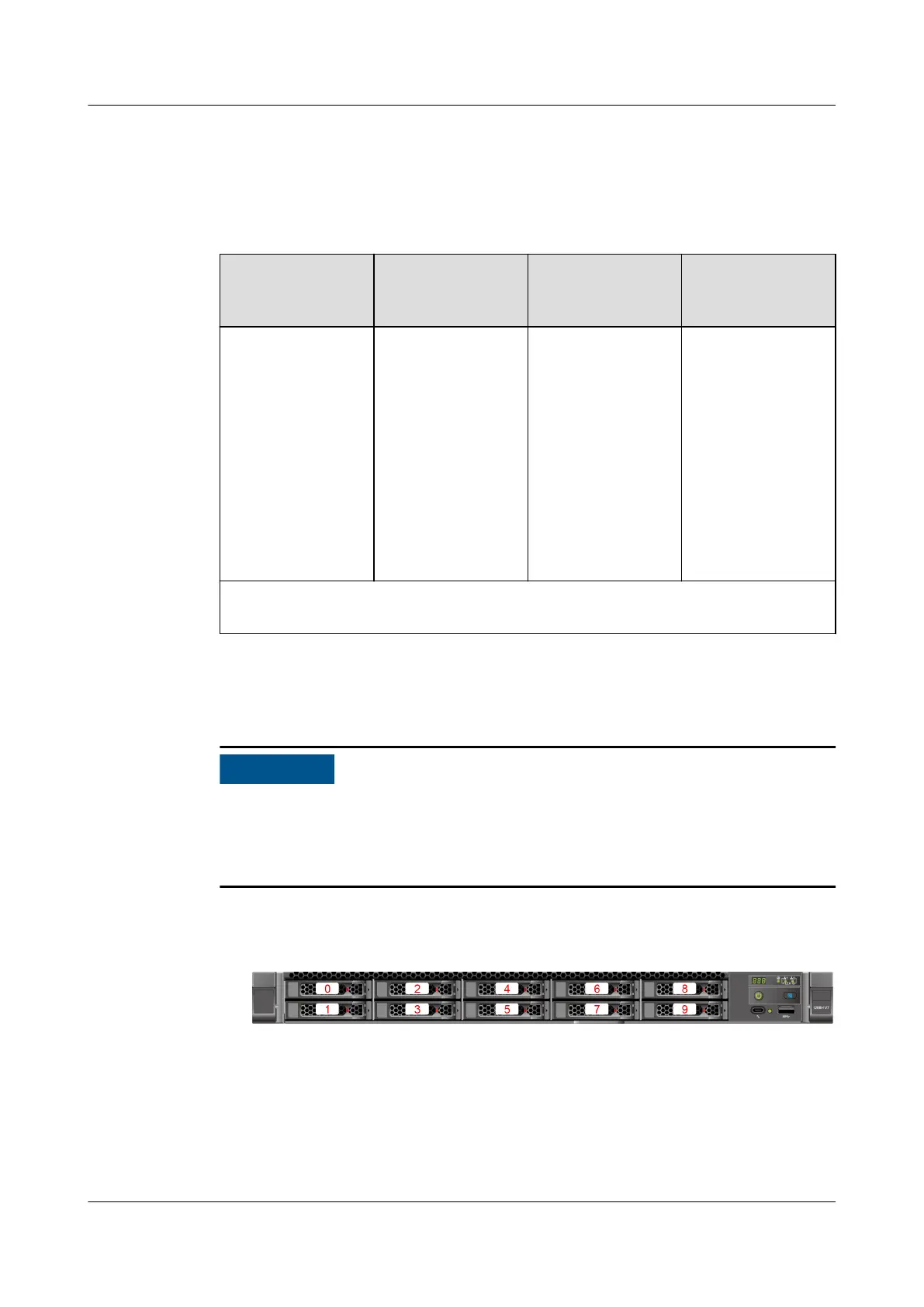

Figure 5-25 Drive numbering
