xFusion Digital Technologies FusionServer 1288H V7

45 Front-drive backplane
signal connector (FRONT
HDD BP/J6082)
46 Front-drive backplane
power connector (FRONT
HDD PWR/J6093)
a
47 Rear I/O module 3 drive
backplane signal connector
(PSU HDD BP/J6087)
a
48 Rear I/O module 3 power
connector (IO3 PWR/
J6089)
49 PSU 2 connector (PSU2/
J6096)
50 PSU 1 connector (PSU1/
J6095)
51 CPU 2 UBC DD connector
(UBCDD2-8/J6054)
52 Built-in drive module power
connector (INNER PWR/
J6090)
a: The reserved connector is temporarily unavailable.
5.10.2 Drive Backplane
Front-Drive Backplane
● 4 x 3.5" drive pass-through backplane
This backplane is used for all drive configurations described in section 5.5.1.1 4
x 3.5" Drive Pass-Through Configuration.

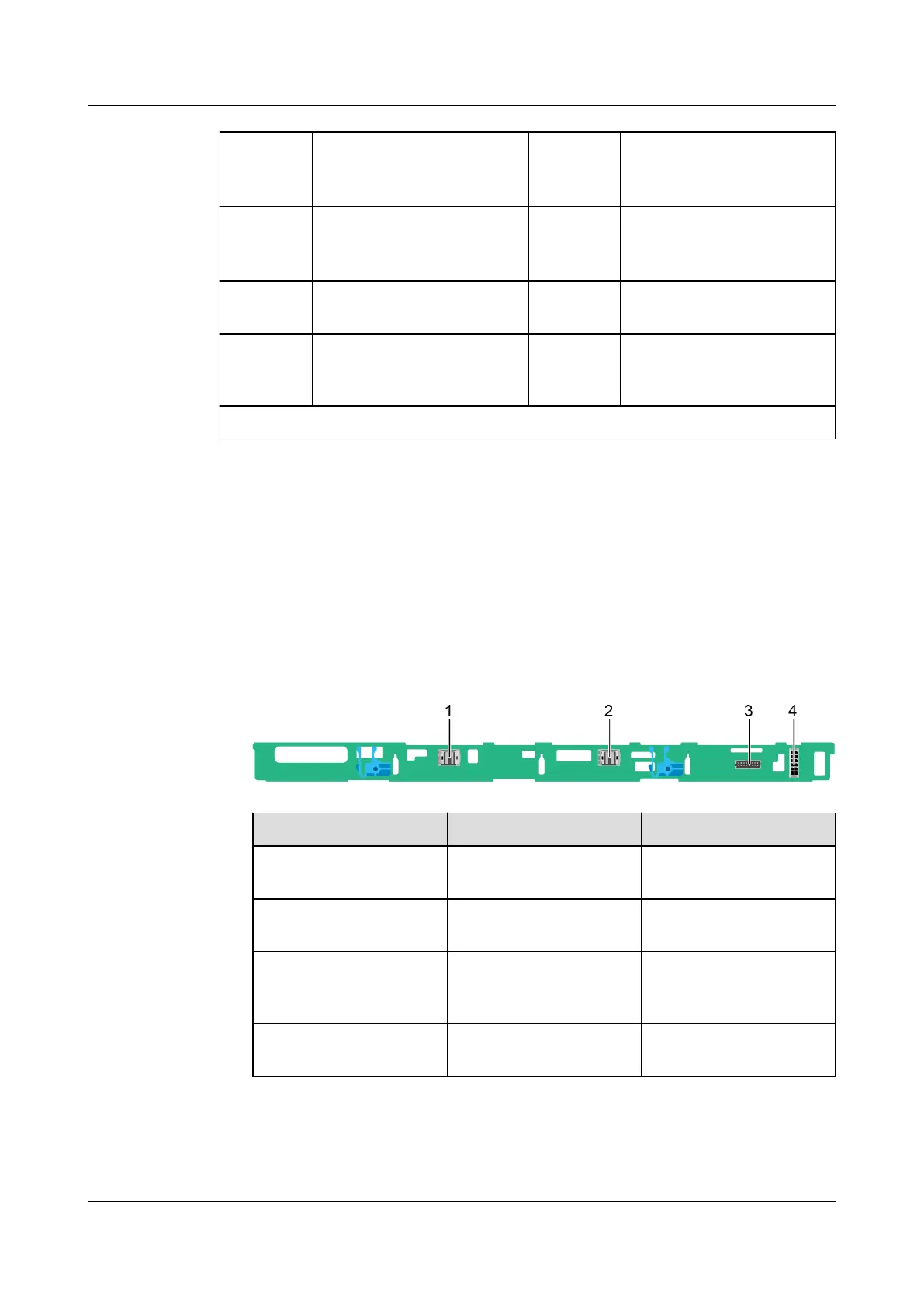

Figure 5-34 4 x 3.5" drive pass-through backplane
No.
Connector Managed Drive Slot
1 Mini-SAS HD connector
(PORT B/J401)
Slots 2 and 3
2 Mini-SAS HD connector
(PORT A/J28)
Slots 0 and 1
3 Backplane signal cable
connector (HDD BP/
J19)
-
4 Power connector
(HDD_POWER/J21)
-
● 8 x 2.5" drive pass-through backplane
This backplane is used for all drive configurations described in section 5.5.1.2 8
x 2.5" Drive Pass-Through Configuration.
FusionServer 1288H V7 Server
Technical White Paper 5 Hardware Description
Issue 02 (2023-05-25) Copyright © xFusion Digital Technologies Co., Ltd. 48
