Table 5-18 Drive numbering
Drive Number Drive Number
Displayed on the iBMC
WebUI
Drive Number
Identified by the RAID
Controller Card
0 0
0
Note
1 1
1
Note
2 2
2
Note
3 3
3
Note
4 4
4
Note
5 5
5
Note
6 6
6
Note
7 7
7
Note
8 8
8
Note
9 9
9
Note
Note: If the slot is configured with a SAS/SATA drive, the RAID controller card
can manage the drive and allocate a number to the drive.
5.5.2 Drive Indicators
SAS/SATA Drive Indicators

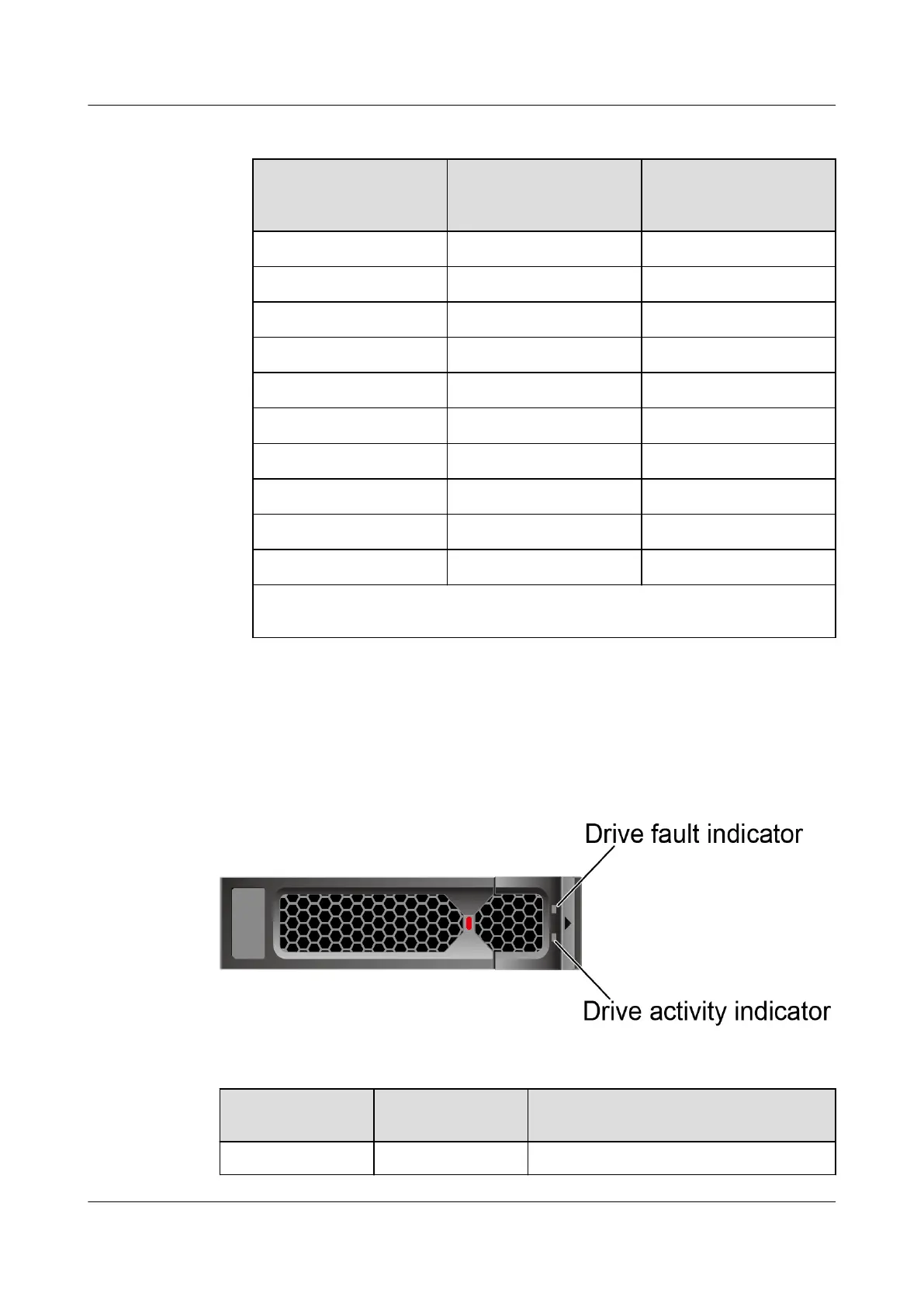

Figure 5-26 SAS/SATA drive indicators
Table 5-19 SAS/SATA drive indicator description
Activity Indicator
(Green)
Fault Indicator
(Red/Blue)
Description
Off Off The drive is not detected.
