Activity Indicator
(Green)
Fault Indicator
(Red/Blue)
Description
Steady on Off The drive is detected.
Blinking at 4 Hz Off Data is being read or written properly, or
data on the primary drive is being
rebuilt.
Steady on Blinking blue at 4
Hz
The drive is being located.
Blinking at 1 Hz Blinking red at 1
Hz synchronously
Data on the secondary drive is being
rebuilt.
Off Red steady on A drive in a RAID array is removed.
Steady on Red steady on The drive is faulty.
NVMe Drive Indicator

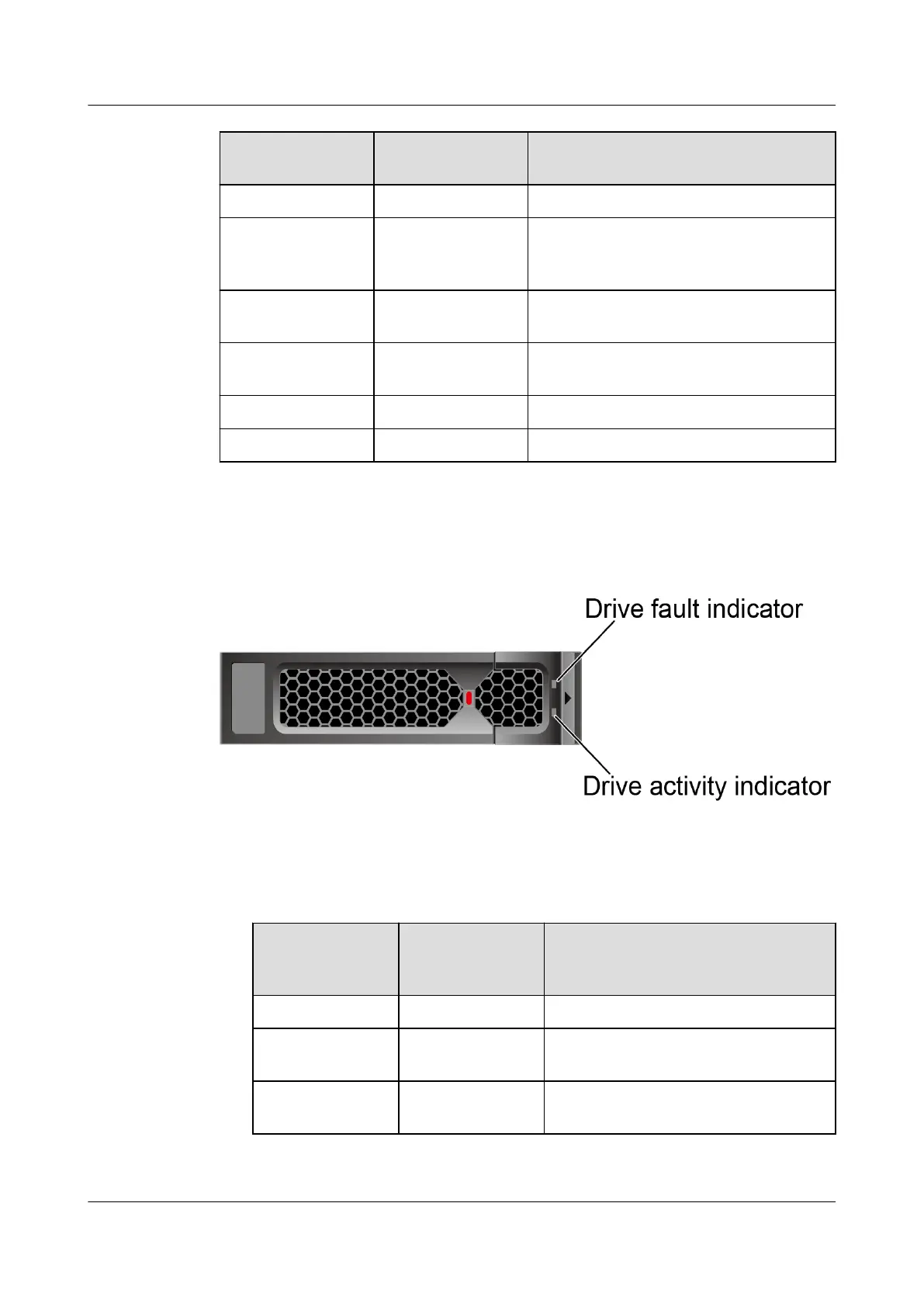

Figure 5-27 NVMe drive indicator
● If the VMD function is enabled and the latest VMD driver is installed, the NVMe
drives support surprise hot swap.
Table 5-20 NVMe drive indicator description (VMD function enabled)
Activity
Indicator
(Green)
Fault Indicator
(Red/Blue)
Description
Off Off The NVMe drive is not detected.
Steady on Off The NVMe drive is detected and
operating properly.
Blinking at 4 Hz Off Data is being read from or written to
the NVMe drive.
FusionServer 1288H V7 Server
Technical White Paper 5 Hardware Description
