Chapter4. Radio Overview

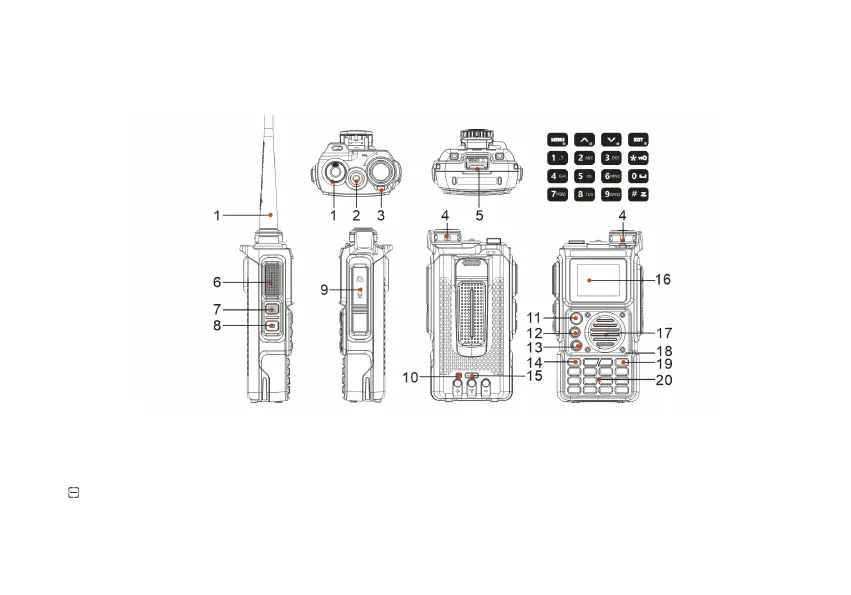

4.1 Buttons and controls of the radio
1. Antenna 2. LED flashlight 3. Status LED
4. Power / Volume knob 5. Battery release latch 6. PTT - Push to talk
7. SK1-Programmable key (flashlight/alarm switch) 8. SK2-Programmable Key (Radio/Monitor) 9. Accessory jack
10. Type-C charging indicator 11. V/M-VFO/MR mode key 12. A / B select key
13.
SWEEP key 14.MENU Key 15. Type-C charging port
16. Color LCD 17. Speaker 18. Microphone
19. EXIT Key 20. Keypad
