2-4 Installation XT-50, XT-80, and XT-100 Amplifiers
THE AMPLIFIER SHOULD BE SECURELY GROUNDED FOR PERSONNEL
AND EQUIPMENT SAFETY.
BE CERTAIN THAT THE AC VOLTAGE CABLE HAS THREE WIRES
WHERE THE THIRD WIRE IS A SAFETY GROUND.
Fuses
Input AC power fuses are 13” AGC type related at 8 amperes. They are replaceable through the
screw-on sealing caps next to the prime power connector.

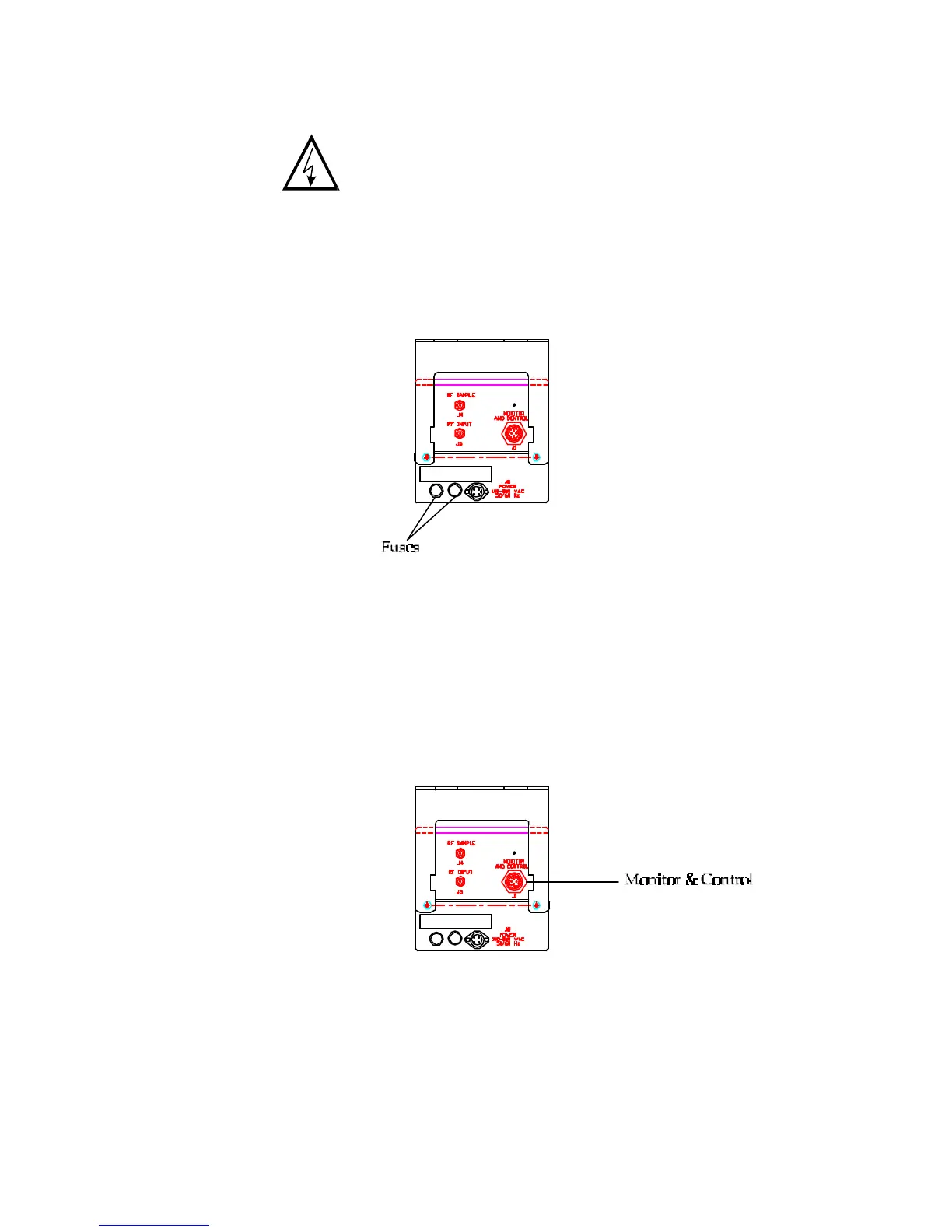

Figure 2-6. Location of Fuses
Controller Connections
Connector J1 (Figure 2-6) on the “Input End” of the amplifier connects to the external controller. A
description of the functions of this connector follows Figure 2-6. The standard connecting cable and
the controller end of the cable are described in the paragraphs following the description of connector
J1.
Figure 2-7. Location of Controller Interface Connector J1
