2-12 Installation XT-50, XT-80, and XT-100 Amplifiers
•• +15 Volts (Pin E). Fifteen volts DC at 100 mA is available for
external use or for powering the pull-up resistors for the control
and status signals (Pin Y).
•• +24 Volts (Pin V). Twenty-four volts DC at 100 mA is available for
external use.

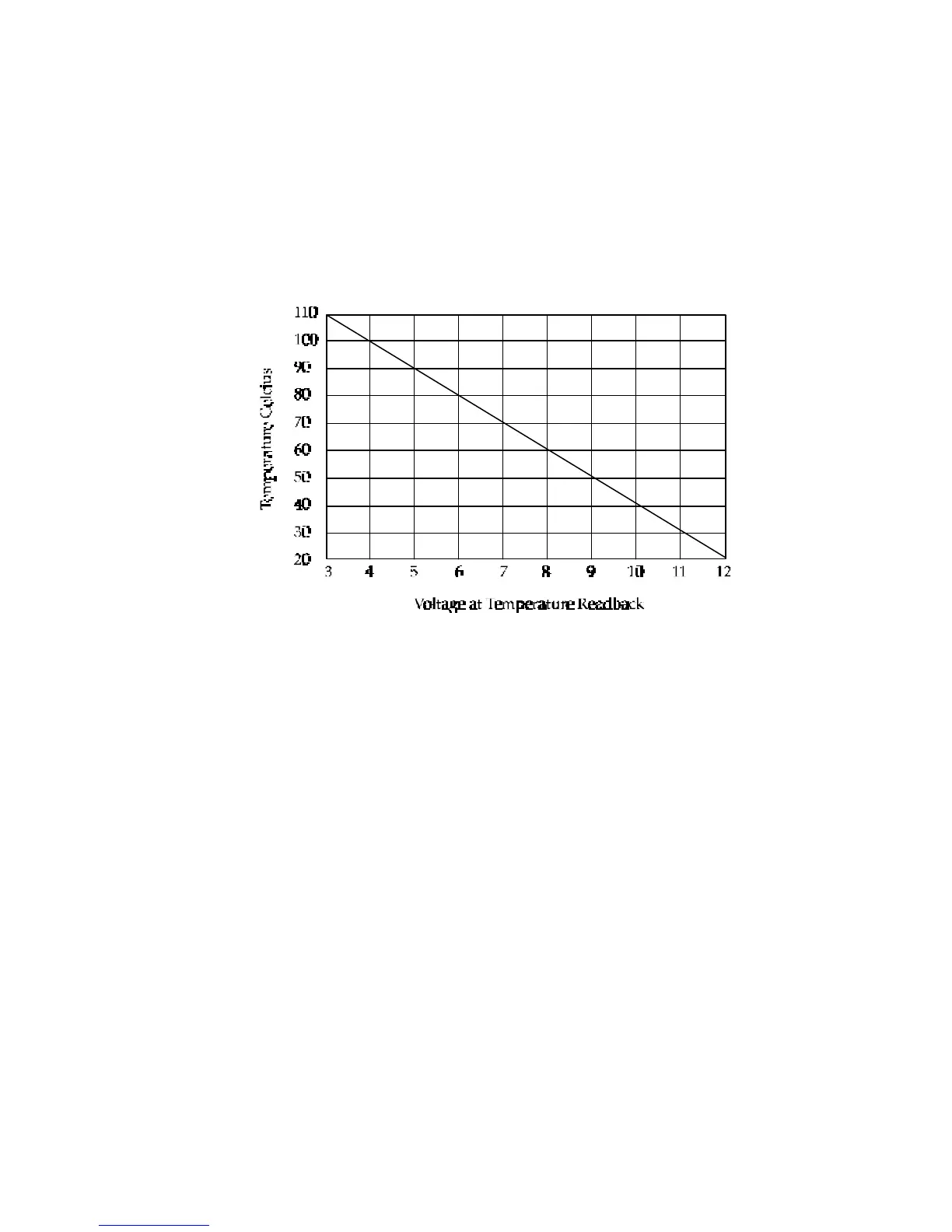

Figure 2-12. TWT Temperature: Temperature vs. Voltage
