Chapter 1: Getting Started with the Kintex-7 FPGA KC705 Embedded Kit
7. In the video demonstration Web page, make the following selections as shown in
Figure 1-5:
•Live Video: No
•Stream Selection: All Scaled streams
8. The selected options take effect automatically. The performance, temperature, and
voltage graphs are also plotted on the Web page (Figure 1-5).
X-Ref Target - Figure 1-5

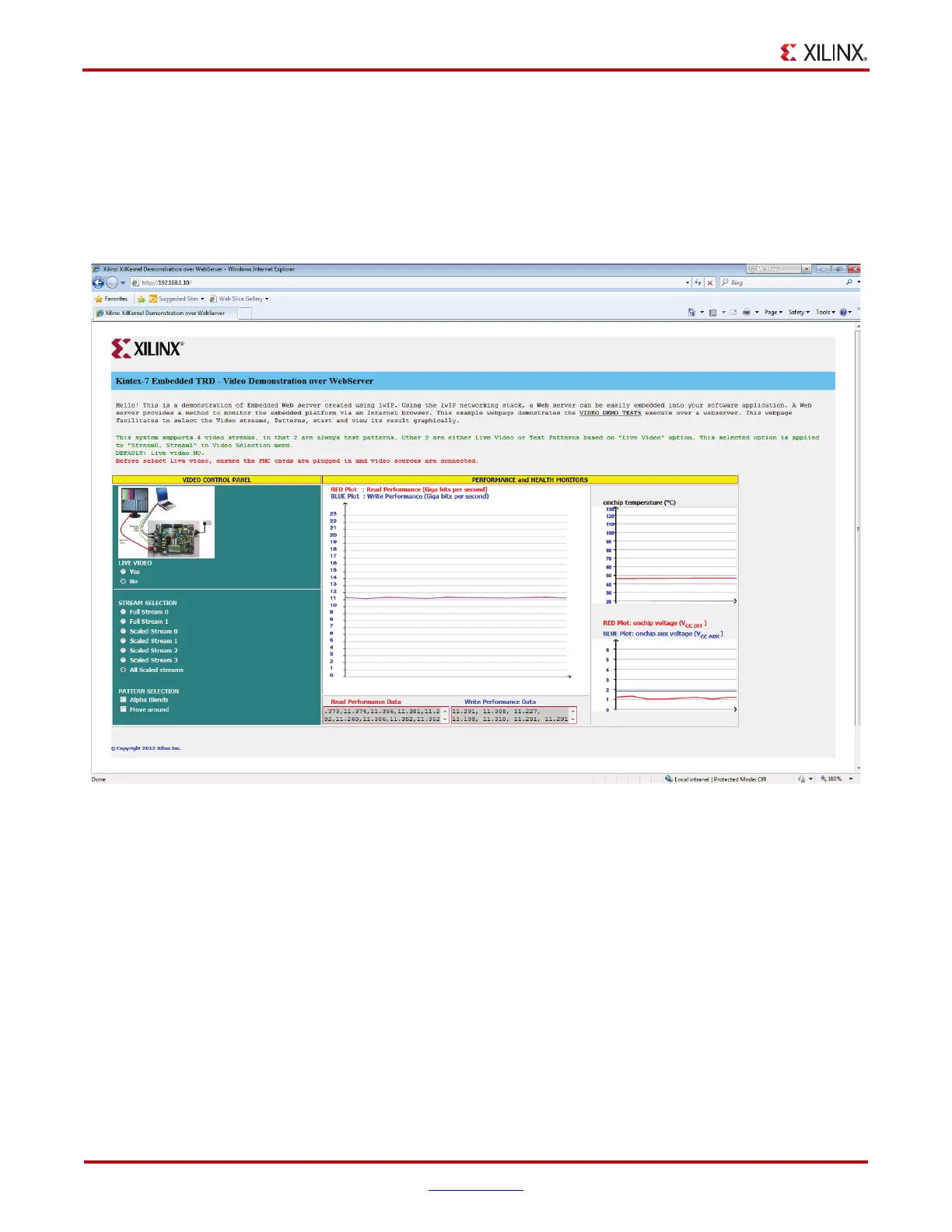

Figure 1-5: Video Demonstration Web Page with Data Plotted
UG913_c1_05_032313
