Page #12 background image

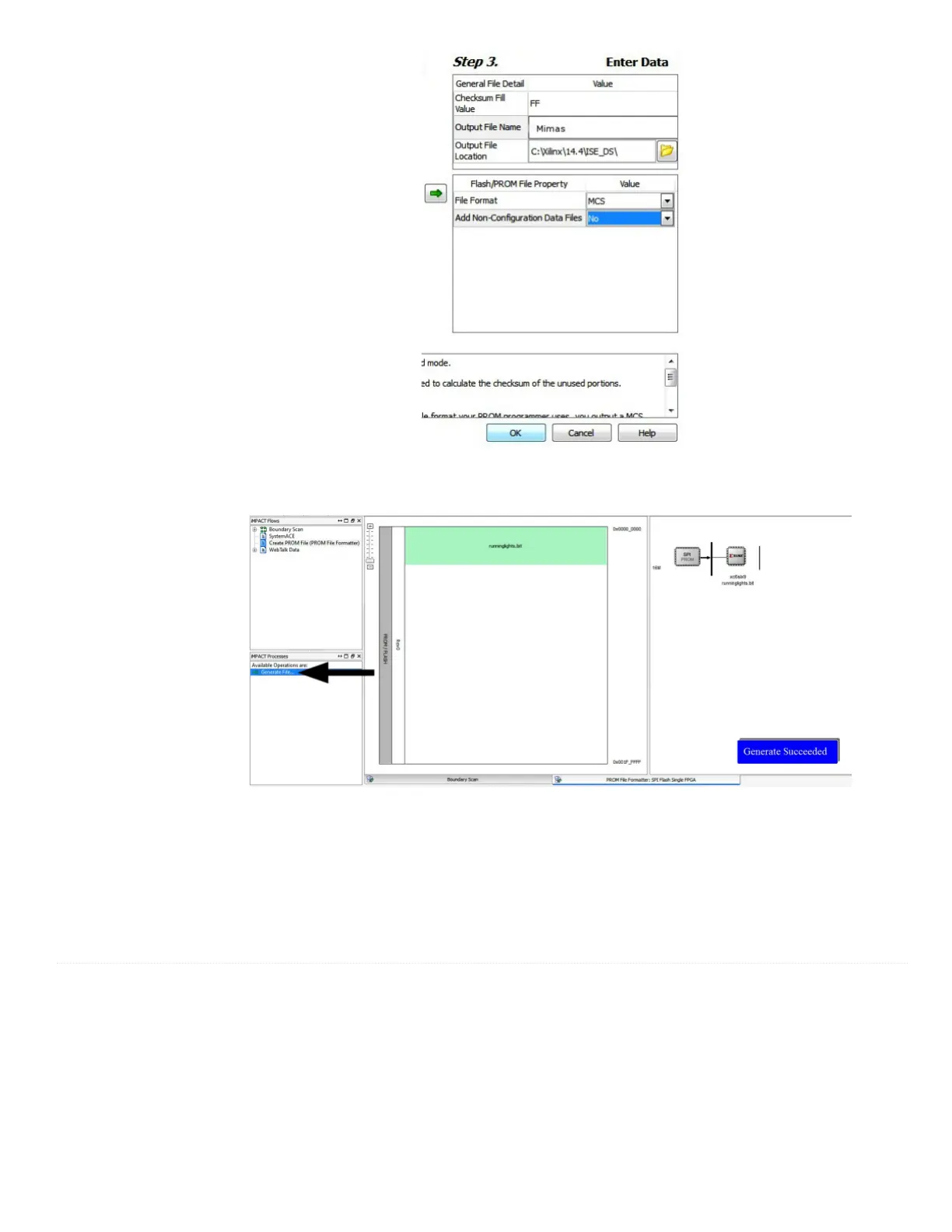

Step 4: Double click on “Generate File”. Generate Succeeded” will be displayed as shown in g below if the mcs le is generated successfully.
7. Programming FPGA Using ISE iMPACT
Step 1: Open ISE iMPACT. Click on “Boundary Scan” in the iMPACT ows window in the left top corner. Then right click on the window panel in the right side. Selec
