Xilinx Mimas Spartan 6 FPGA User Manual

Header Pin No. Pin description
Spartan-6(XC6SLX9 TQG144)
Pin No.
27 IO_L41N_GCLK8_1 92
28 IO_L41P_GCLK9_IRDY1_1 93
29 IO_L40N_GCLK10_1 94
30 IO_L40P_GCLK11_1 95
31 IO_L34N_1 97
32 IO_L34P_1 98
33 IO_L33N_1 99
34 IO_L33P_1 100
35 IO_L32N_1 101
36 IO_L32P_1 102
37 IO_L1N_VREF_1 104
38 IO_L1P_1 105
39 GND NA
40 VCCIO NA
3. Driver Installation
3.1. Installing on Windows
This product requires a driver to be installed for proper functioning when used with Windows. The driver
package can be downloaded from the product page. To install the driver, unzip the contents of the downloaded
driver package to a folder. Attach USB cable to the PC and when asked by Windows device installation wizard,
point to the folder where driver les are present. When driver installation is complete, the module should appear

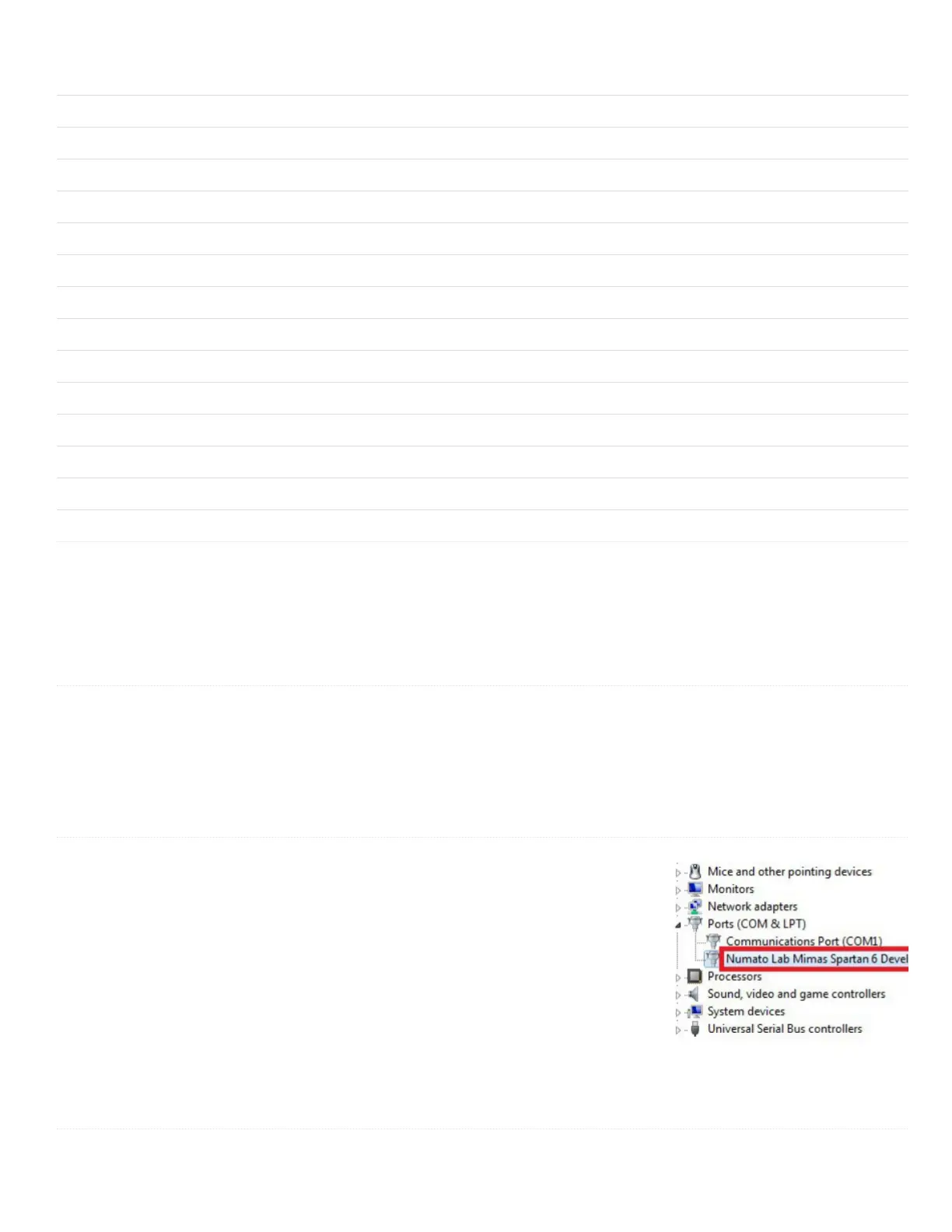

in Windows Device Manager as a serial port (see the picture on the right). Note down the name of the serial port
(COM1, COM2 etc..). This information is required while programming the module with conguration tool.
3.2. Installing on Linux

