Restoring ML605 Platform and P30T BPI Flash

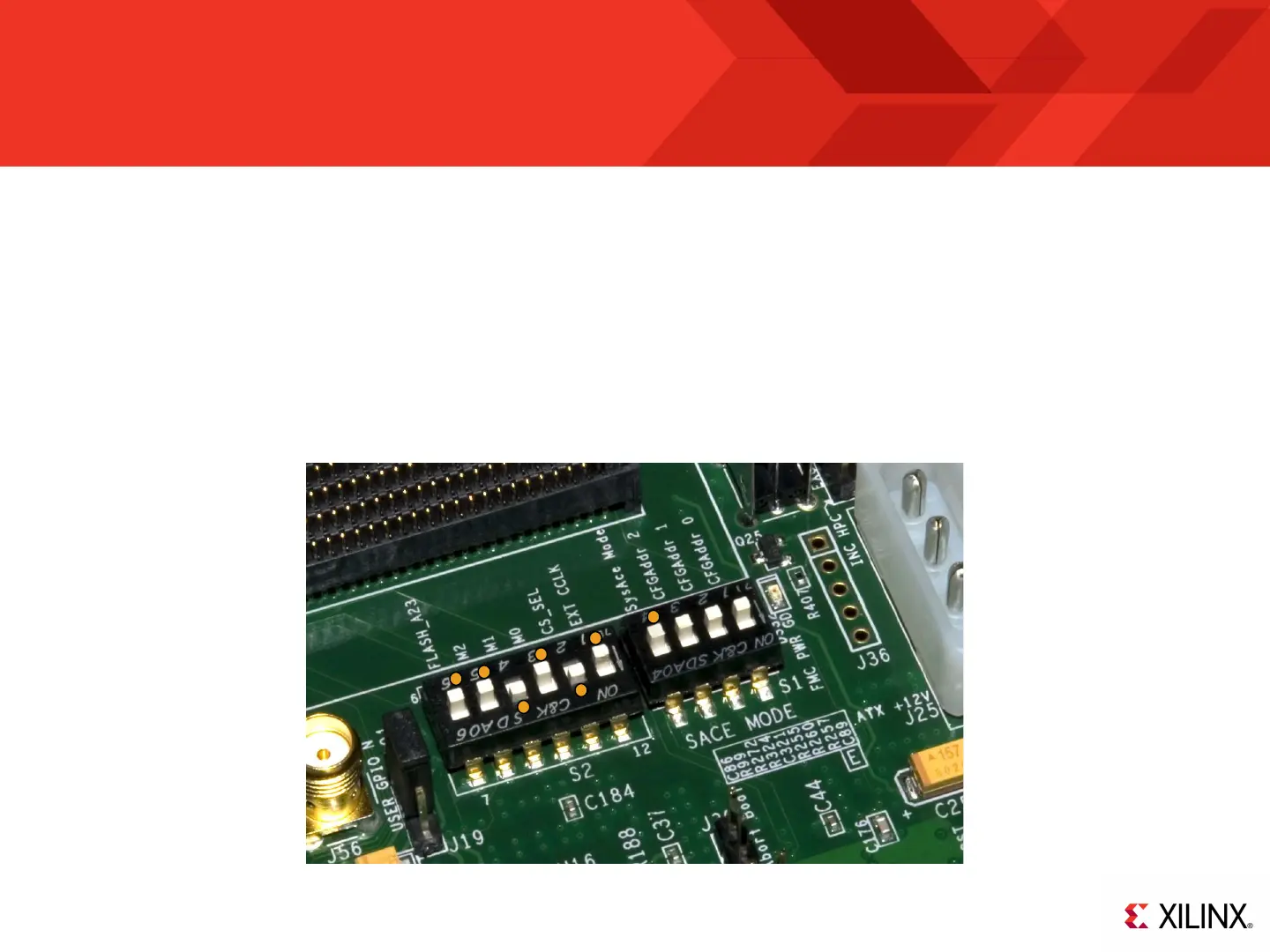

 Set S2 to 001010 (1 = on, Position 6 → Position 1)
– This selects P30T BPI
– Mode Switches set to BPI-Up
 Set S1 to 0XXX (X = Don’t care, Position 4 → Position 1)
– This disables JTAG configuration from the Compact Flash
Note: Presentation applies to the ML605
