Qdesys Sensorless Field Oriented Control Quick Start Guide
© Copyright 2012 Xilinx
23

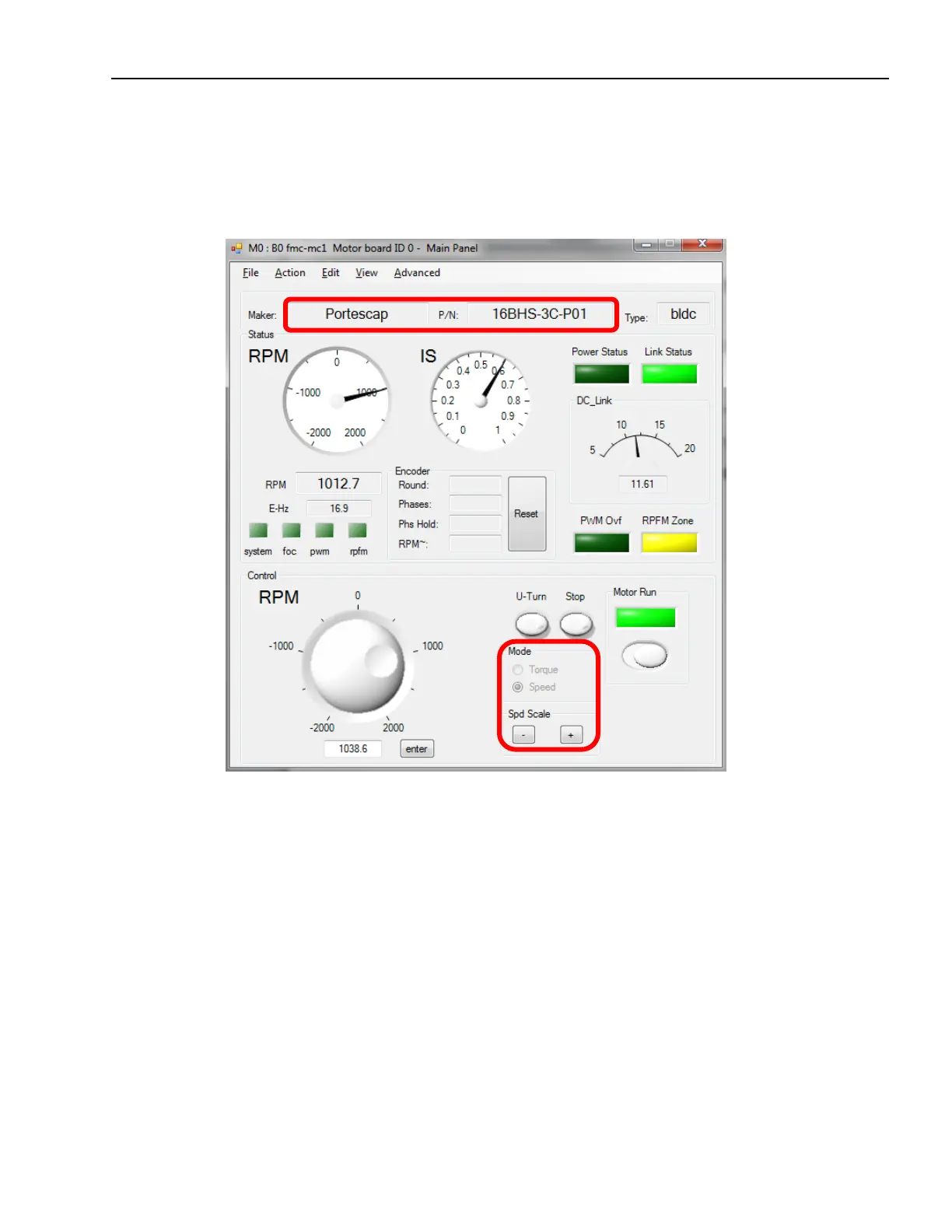

7. Use the Spd Scale +/- button to increase the RPM dial scale to display up to 2000 RPM.
8. Rotate the RPM (speed) dial to ~1000 RPM.
9. The rotor first aligns itself, then ramps current smoothly, and finally engages the speed control
loop. The motor should now be spinning!
