Xilinx Spartan 6 FPGA Quick Start Guide

Qdesys Sensorless Field Oriented Control Quick Start Guide
© Copyright 2012 Xilinx
10
Host PC Network Configuration

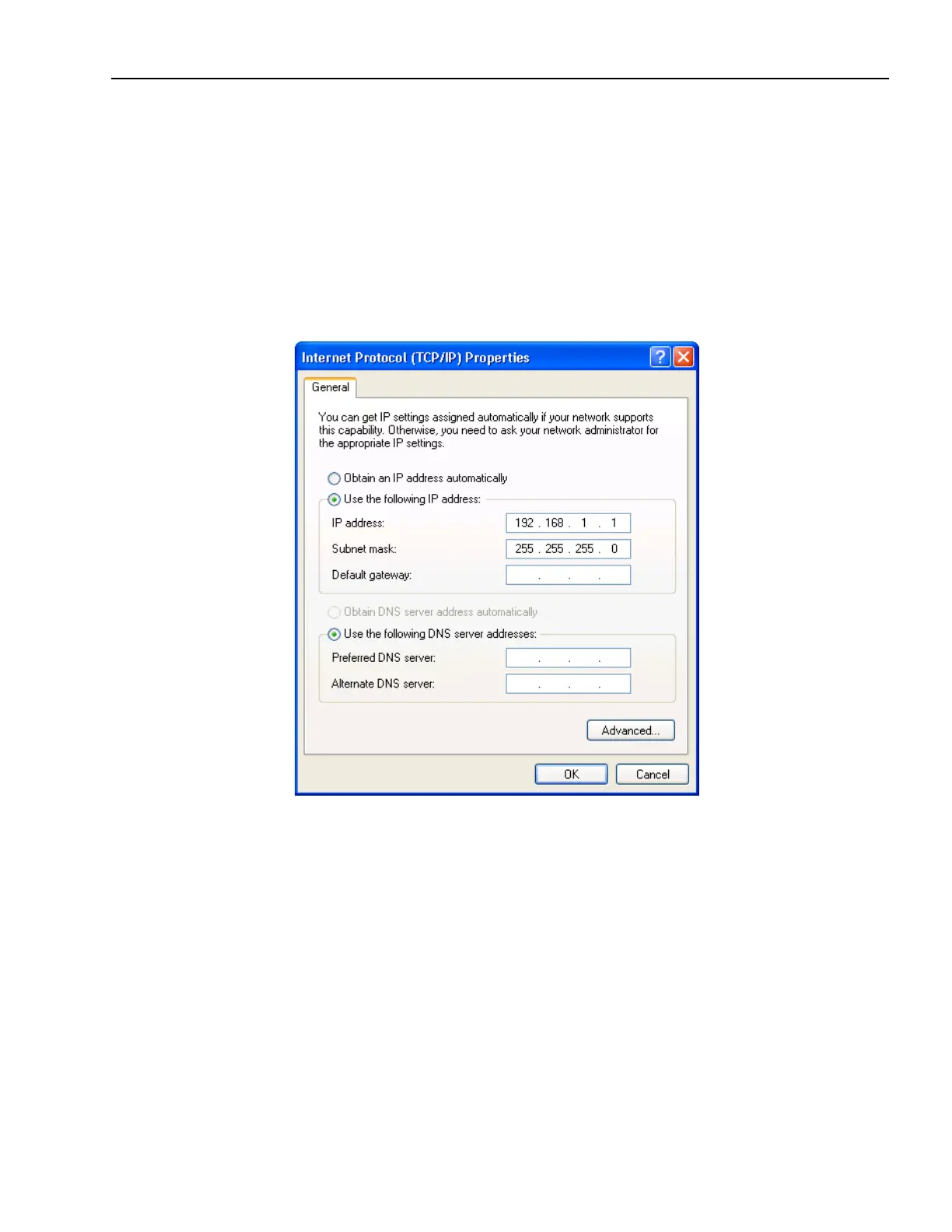

1. Start  Control Panel  Network Connections
2. Local Area Connection -> Properties
3. Double-click Internet Protocol (TCP/IP)
4. Set IP Address to: 192.168.1.1 (the baseboard has a fixed IP address of 192.168.1.100, so you
may choose other host IP addresses around it, for example 192.168.1.2 – 192.168.1.99)
5. Click on Control Panel  Network and Sharing  LAN  Configure and set Link Speed and
Duplex to Autonegotiation as shown below:
