Running the Demo
The Qdesys Motor Control Manager Application (mc_manager) provides an extensive graphical user
interface for controling and monitoring the system. This is an extensive suite of applications that allow the
expert user to monitor every aspect of the control loop and finely tune the peformance for their particular
motors and system parameters. In addition, there high level controls that allow for quick demonstrations
without expert knowledge of motor control or this application. The following steps will introduce you to
some of the basic functionality.
Using the GUI:
1. From the Windows Start menu choose Start  All Programs  Qdesys  mc_manager 
mc_manager

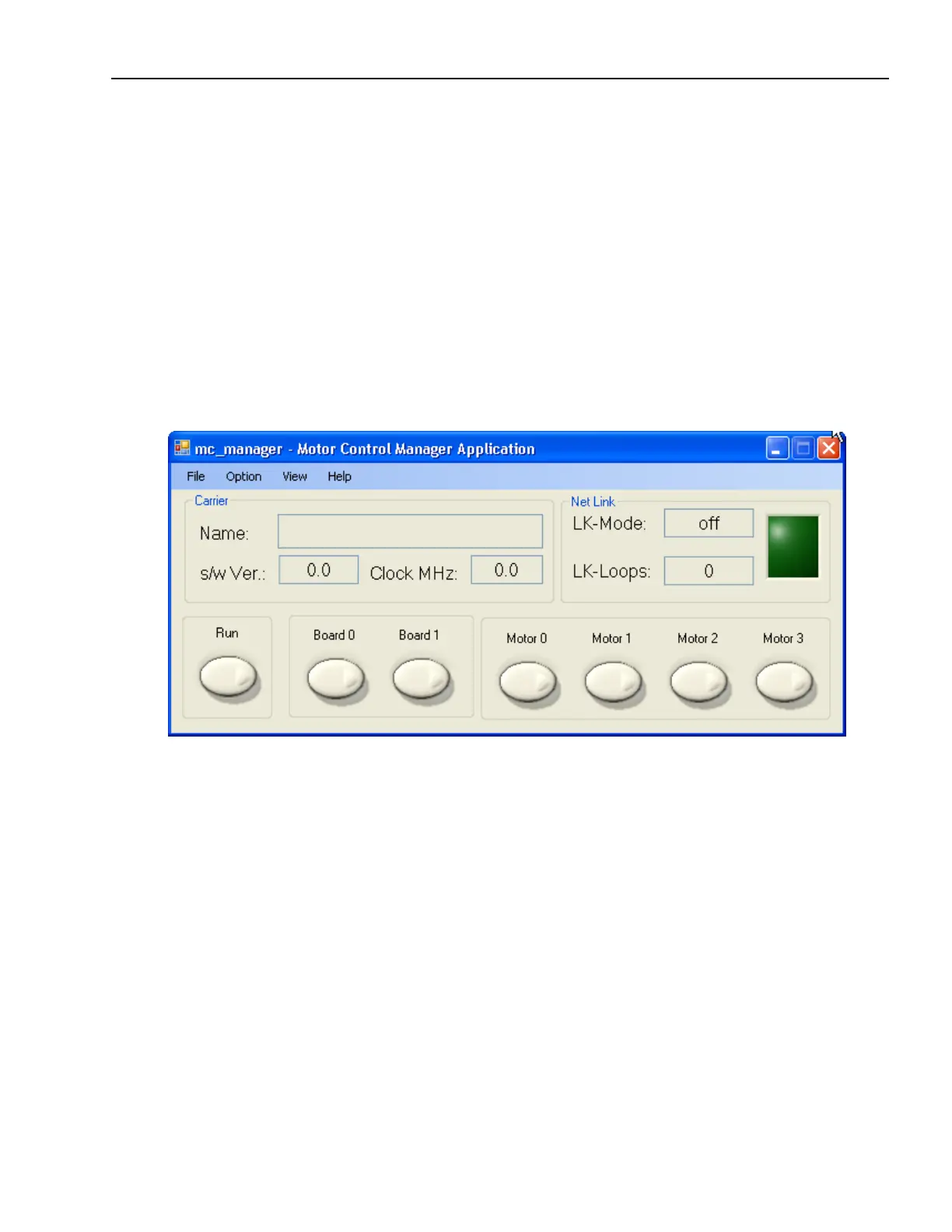

2. When the mc_manager GUI opens, click RUN to initialize the Ethernet connection. Verify
that the link connection status illuminates green in the window. Note that it may turn orange for
several seconds while negotiating the link. You should get this on the GUI after the connection is
complete:
