Qdesys Sensorless Field Oriented Control Quick Start Guide
© Copyright 2012 Xilinx
26
Waveform Display
The GUI has the capability to enable continuous sampling of the voltage & current, and then plot them in
a variety of useful graphs for analysis.
10. In the Motor 0 Main Panel window top menu, select View  Current Acquisition Control
11. Click Free Run, and then close the window. This enables a continuous capture of current
measurement of the motor phases
12. In the Motor 0 Main Panel window top menu, select View  Whole Graph

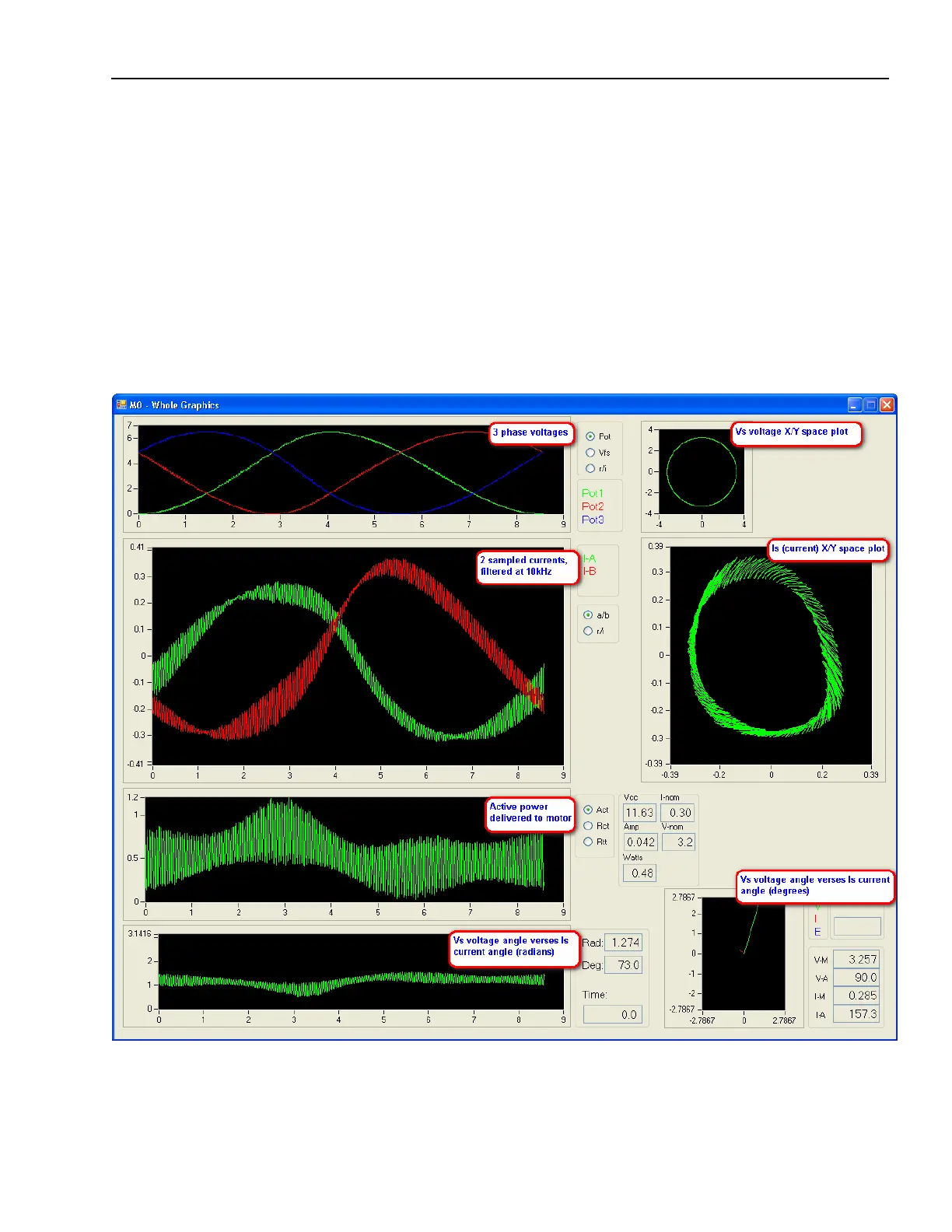

13. This displays a graph of several motor parameters in near-real-time. See below for a brief
description. More details can be found in the mc_manager help menu.
