VC709 BIST

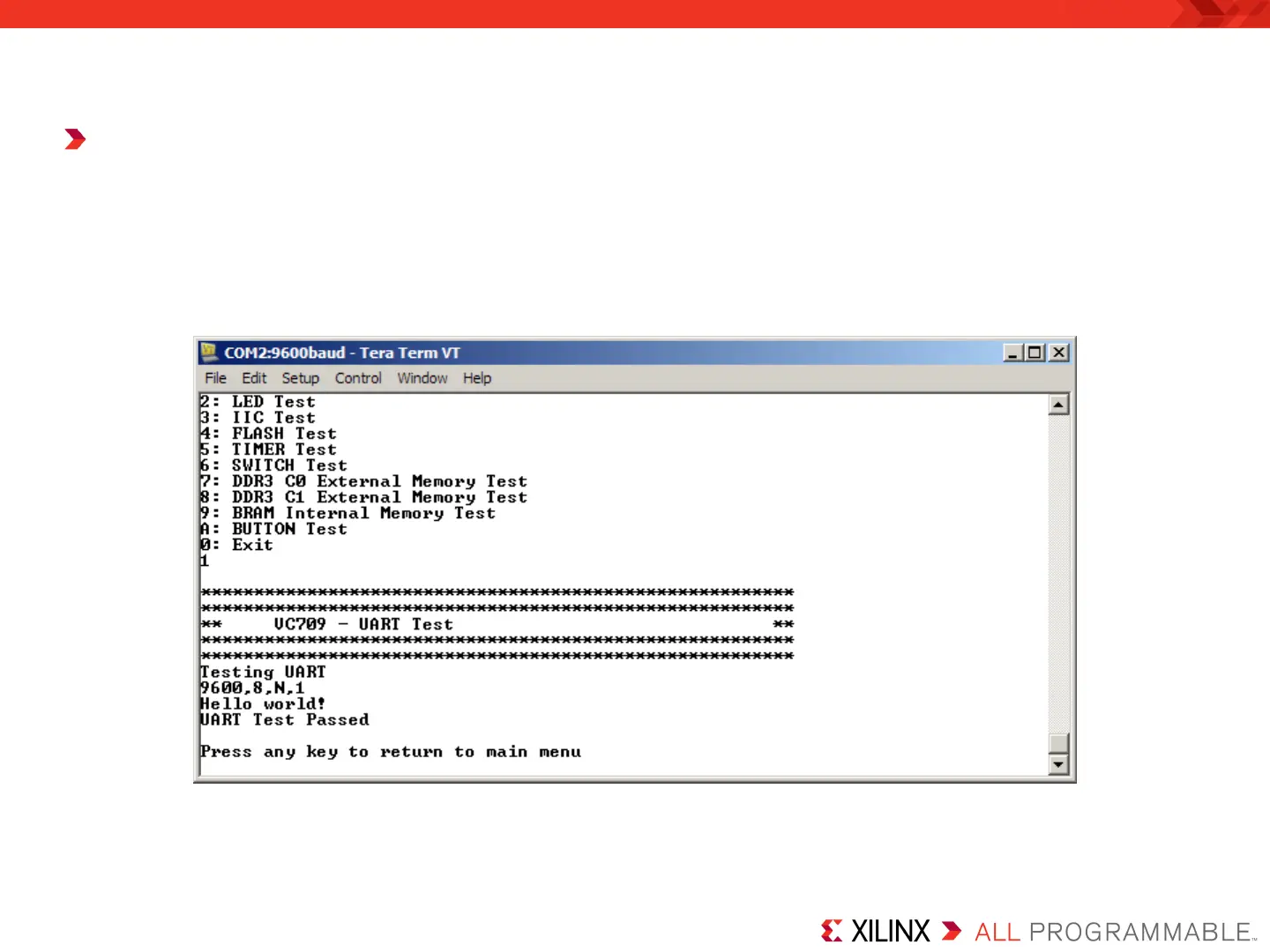

UART Test

– Type “1” to start the UART Test

– After each test, press any key to return to the main menu

Note: Presentation applies to the VC709
