Xilinx Virtex-7 FPGA VC7203 User Manual

VC7203 IBERT Getting Started Guide www.xilinx.com 31
UG847 (v3.0) July 10, 2013
Creating the GTX IBERT Core
8. In the Protocol Selection tab, select Custom 1 / 12.5 Gbps in the drop-down menu
under Protocol Selected next to QUAD_113, and select MGTREFCLK1 113 in the
Refclk Selection drop-down menu (Figure 1-25).
X-Ref Target - Figure 1-24

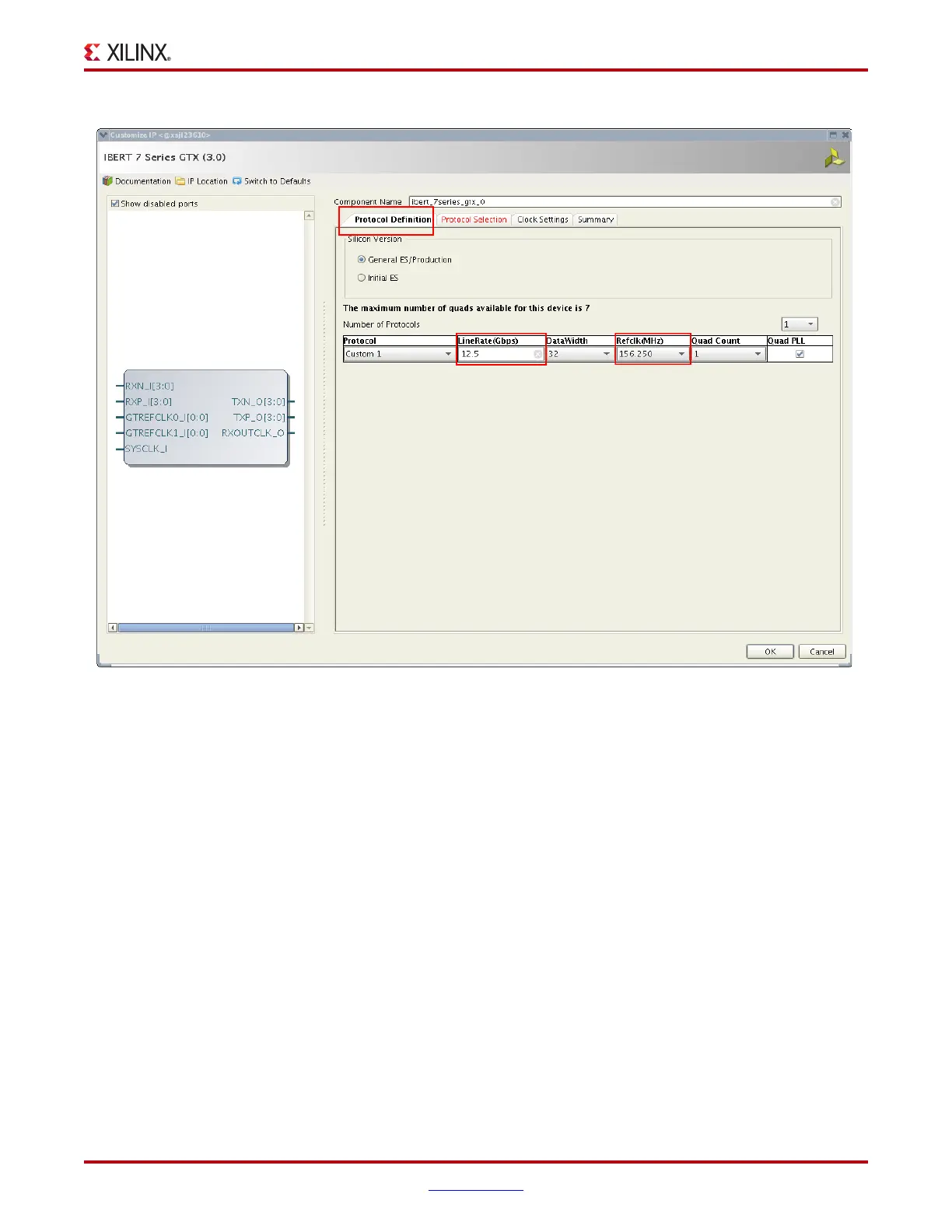

Figure 1-24: Customize IP - Protocol Definition
8*BFBB

Xilinx Virtex-7 FPGA VC7203 Specifications

General

FPGA Family	Virtex-7
Device	XC7VX485T
Transceivers	16
Maximum Transceiver Speed	12.5 Gbps
Transceiver Type	GTX
DSP Slices	2, 800
Block RAM	37, 080 KB
Clock Management Tiles	12
PCIe Gen2/Gen3 Support	Yes
Package	FFG1761
