Xinje DS3 Series Manual

65

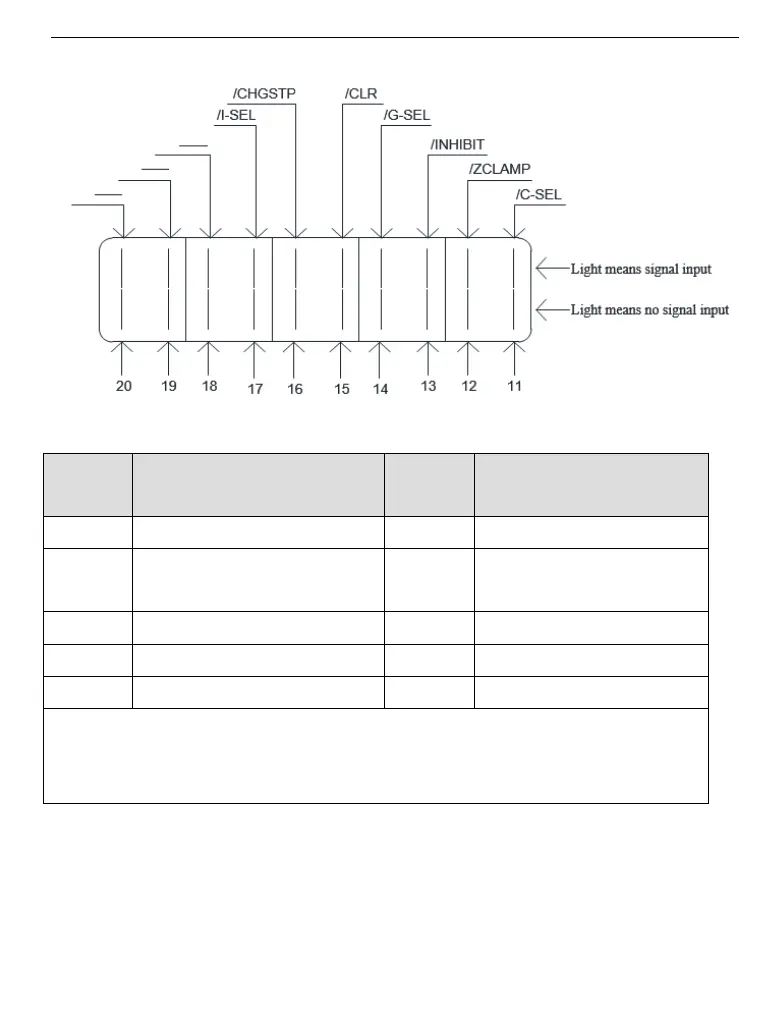

U0-22 input signal 2 distribution
Segment
code
Explanation
Segment
code
Explanation
11
/C-SEL control mode
12
/ZCLAMP zero clamp
13
/INHIBIT command pulse
prohibited
14
/G-SEL gain switch
15
/CLR pulse clear
16
/CHGSTP change step
17
/I-SEL inertia switch
18
—
19
—
20
—
Note: read the status through communication, the binary value from right to left are
related to /C-SEL, /ZCLAMP. 0 means no input, 1 means has input. For example:
0x0001 means /C-SEL has input, 0x0041 means /C-SEL and /I-SEL has input.
Note: “—“ is reserved bit, it is always 0.
