Xinje DS5L Series

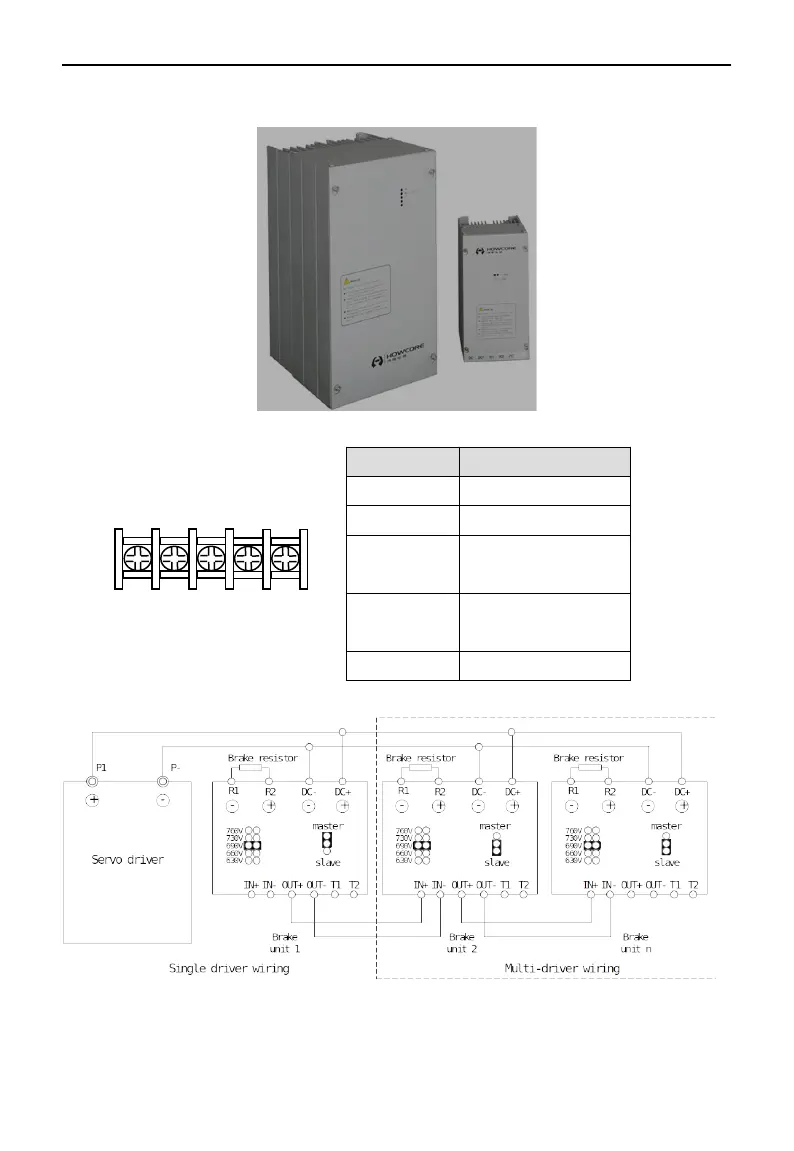

1-4-2.Brake unit（DBM-4110）specification
 Pin definition
DC- DC+ R1 R2 PE
Pin name Description
DC- Connect to DC bus -
DC+ Connect to DC bus +
R1
Connect to one terminal
of brake unit
R2
Connect to another
terminal of brake unit
PE Connect to the ground
 Wiring diagram
13
