Xinje DS5L Series

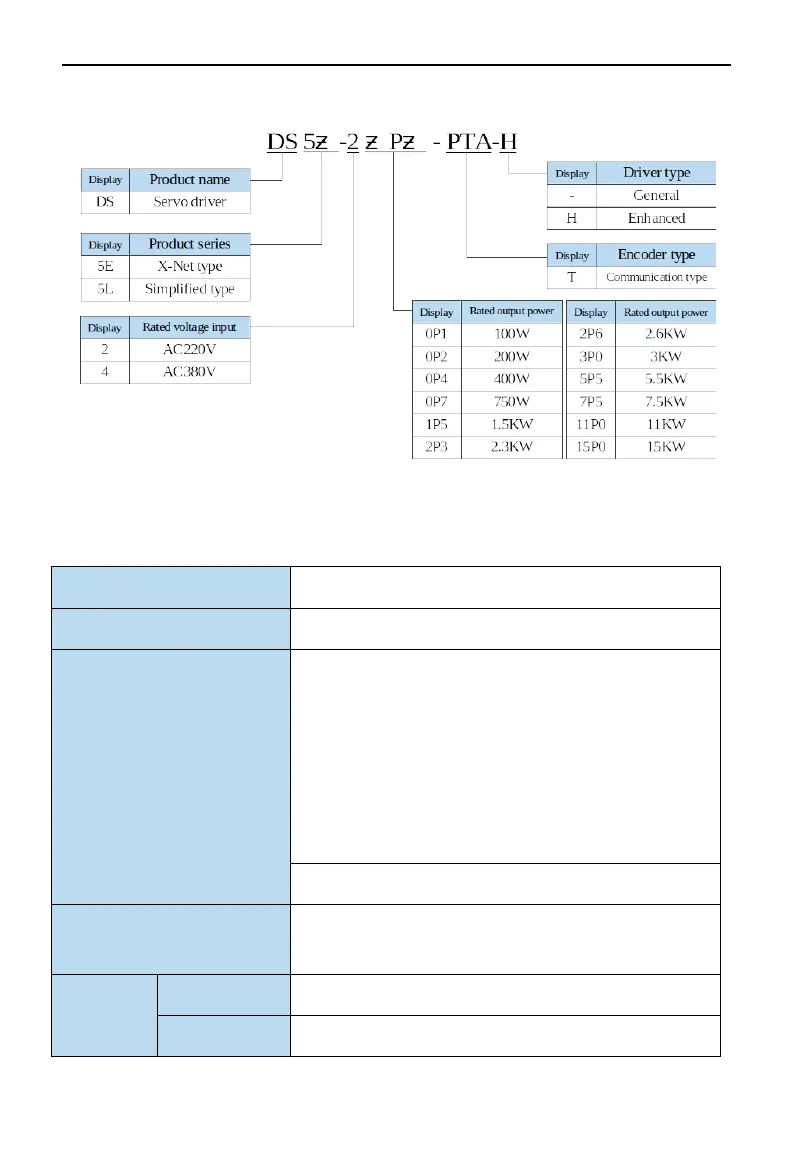

1-1-2.Model naming rule
1-1-3.Performance specification
Servo unit DS5E/DS5L series servo drive
Applicable encoder Standard: 17-bit/23-bit communication encoder
Input power supply
DS5□-2□P□-PTA: Single/three phases AC200-240V, 50/60Hz
Single phase AC200-240V 50/60Hz is used below 1.5KW
(excluding 1.5KW)；
It is recommended to use three-phase AC200-240V 50/60Hz when
the value is above 1.5KW (including 1.5KW).
(For the single-phase power supply, please connect to R and T,
otherwise the power failure will affect the memory of parameters.)
DS5□-4□P□-PTA: three-phase AC340～420V, 50/60Hz
Control mode
Three-phase full-wave rectifier IPM PWM control sinusoidal
current drive mode
Using
condition
Using temperature
-10～+40 ℃
Storage
-20～+60 ℃
