3.Servo driver wiring

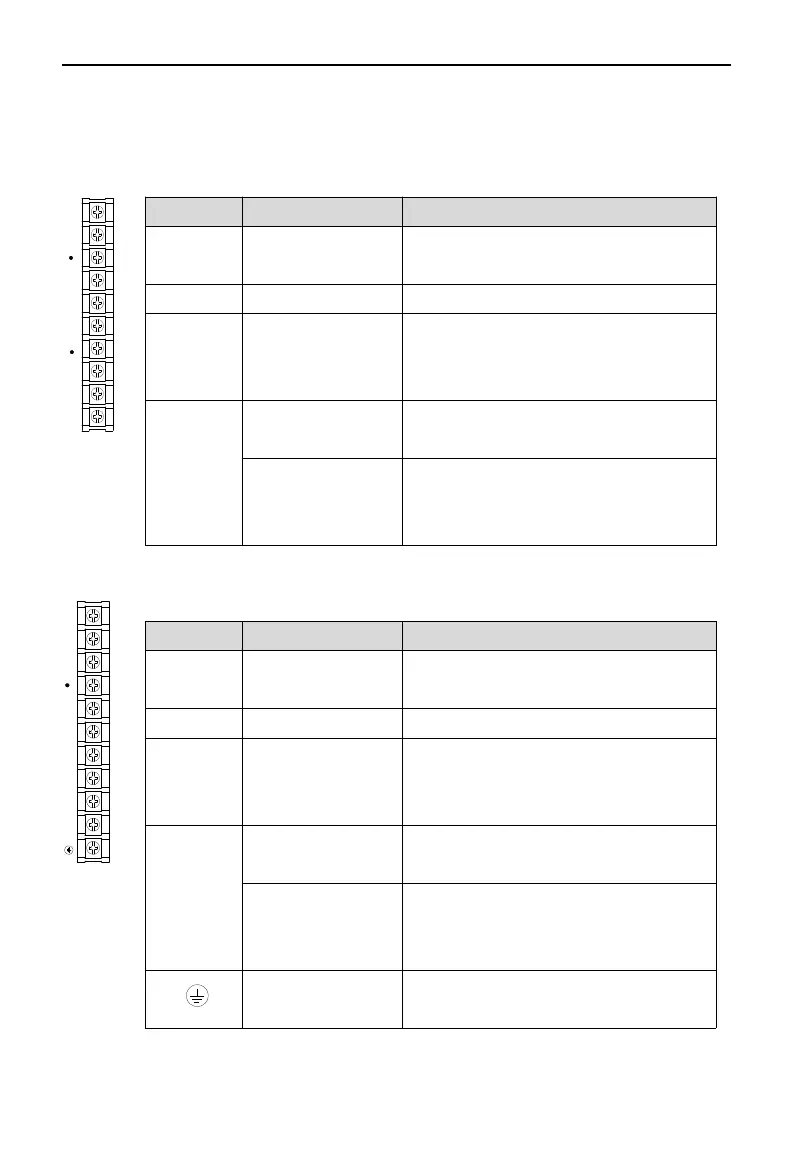

3-1.Main circuit terminals explanation
D
C
P+
L
N
U
V
W
 DS5E/L-20P1/20P2/20P4/20P7-PTA
Terminal Function Explanation
L/N
Power supply input of
main circuit
Single phase AC 200~240V, 50/60Hz
● Vacant terminal -
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+ and
C, disconnect P+ and D, P0-25= power value,
P0-26= resistor value
D
C
P+
R
T
S
U
V
W
 DS5E/L-21P0/21P5/22P3/22P6-PTA
Terminal Function Explanation
R/S/T
Power supply input of
main circuit
Single/3-phase AC 200~240V, 50/60Hz
● Vacant terminal -
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+ and
C, disconnect P+ and D, P0-25= power value,
P0-26= resistor value
Ground terminal
Connect to ground terminal of motor, then
connect to the ground
