Xinje DS5L Series Manual

R
S
T
U
V
W
P+
D
C
P-

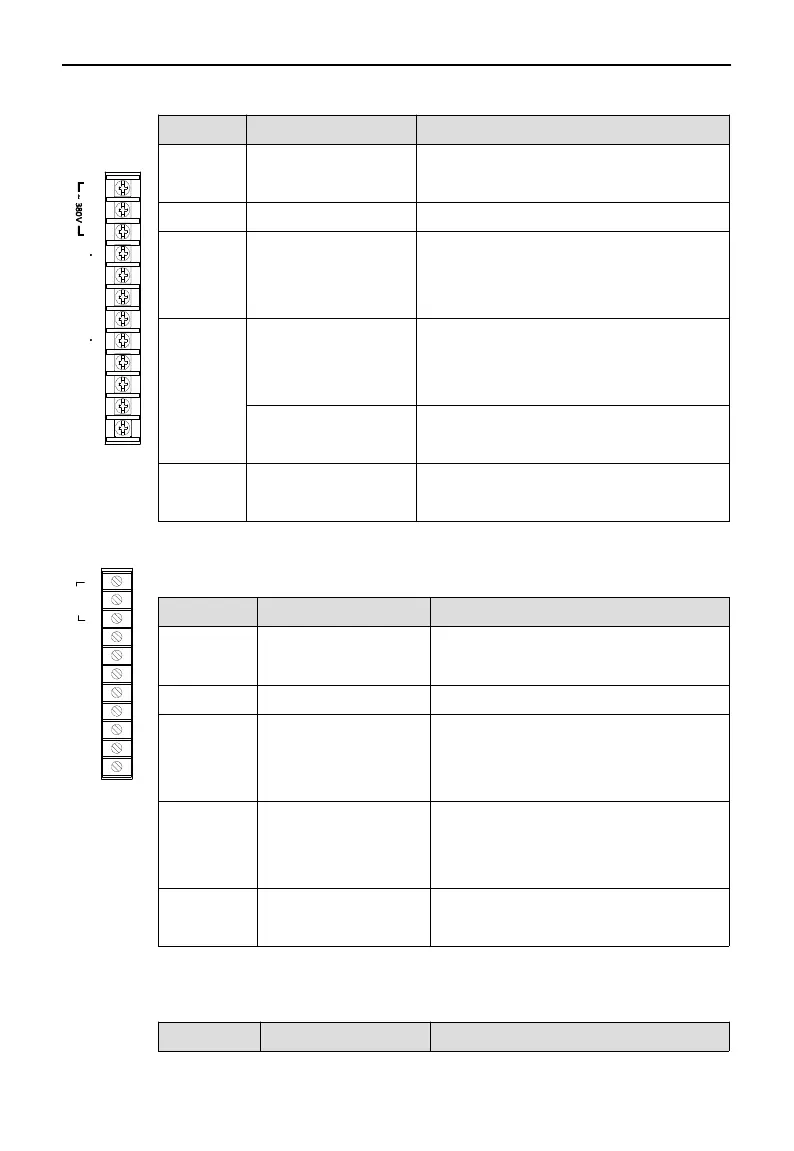

 DS5E-43P0-PTA, DS5E-43P0-PTA-H
Terminal Function Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 380~440V, 50/60Hz
NC Vacant terminal -
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
External regenerative
resistor
Connect regenerative resistor between P+ and
C, disconnect P+ and D, P0-25= power value,
P0-26= resistor value
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C, set P0-
24=0
P+, P- Bus terminal
Real-time bus voltage can be measured. Please
pay attention to the danger.
W
R
380V
U
V
T
S
P+
PB
NC
NC
P-
 DS5E-45P5/47P5-PTA, DS5E-45P5/47P5-PTA-H
Terminal Function Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 380~440V, 50/60Hz
NC Vacant terminal -
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, PB
External regenerative
resistor
Connect regenerative resistor between P+ and
PB, P0-25= power value, P0-26= resistor
value
P+, P- Bus terminal
Real-time bus voltage can be measured.
Please pay attention to the danger.
 DS5E-411P0/415P0-PTA
Terminal Function Explanation
35
