y
setting
1: Power on the panel to display
the value of U0-00, speed
feedback, unit: RPM
2: Power on the panel to display
the value of U0-07, torque
feedback, unit %
again
Speed torque control mode

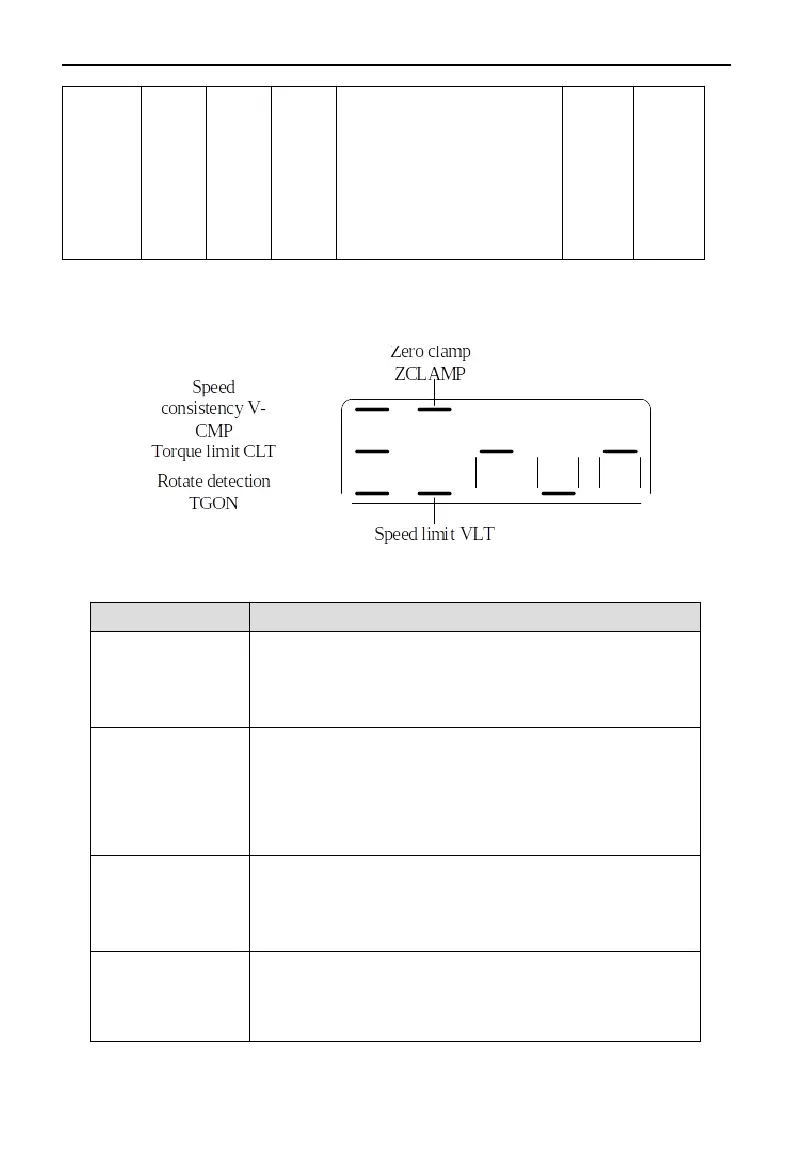

1. Digit display contents
Digit data Display contents
P5-39
Same speed
detection（/V-CMP）
When the actual speed of the motor is the same as the command speed,
turn on the light.
Detection Width of Same Speed Signal: P5-04 (Unit: rpm)
P5-42
Torque limit（/CLT）
When the speed is controlled, when the torque exceeds the set value,
turn on the light.
Internal Forward Torque Limitation: P3-28
Internal Reverse Torque Limitation of: P3-29
P5-40
Rotate
detection（/TGON）
P5-03（Unit: rpm）When the motor speed is higher than the rotating
speed, turn on the lamp.
Rotation detection speed: P5-03 (unit: rpm)
P5-31
Zero
clamp（/ZCLAMP）
When the zero clamp signal starts to operate, turn on the light.
