Xinje MP Series User Manual

33
XC Address
Operational Range
Data Type
Description
X
0~177
Bit
External input coil
Y
0~177
Bit
External output coil
M
0~8255
Bit
Internal coil
S
0~999
Bit
Stepping coil
T
0~255
Bit
Timer status
C
0~255
Bit
Counter
C16
0~199
Word/DWord
16-Bit Counter
C32
200~255
DWord
32-Bit Counter
D
0~8255
Word/DWord
Data register
T
0~255
Word/DWord
Current value
X
0~177
Word/DWord
Data register
Y
0~177
Word/DWord
Data register
M
0~8255
Word/DWord
Data register
S
0~999
Word/DWord
Data register

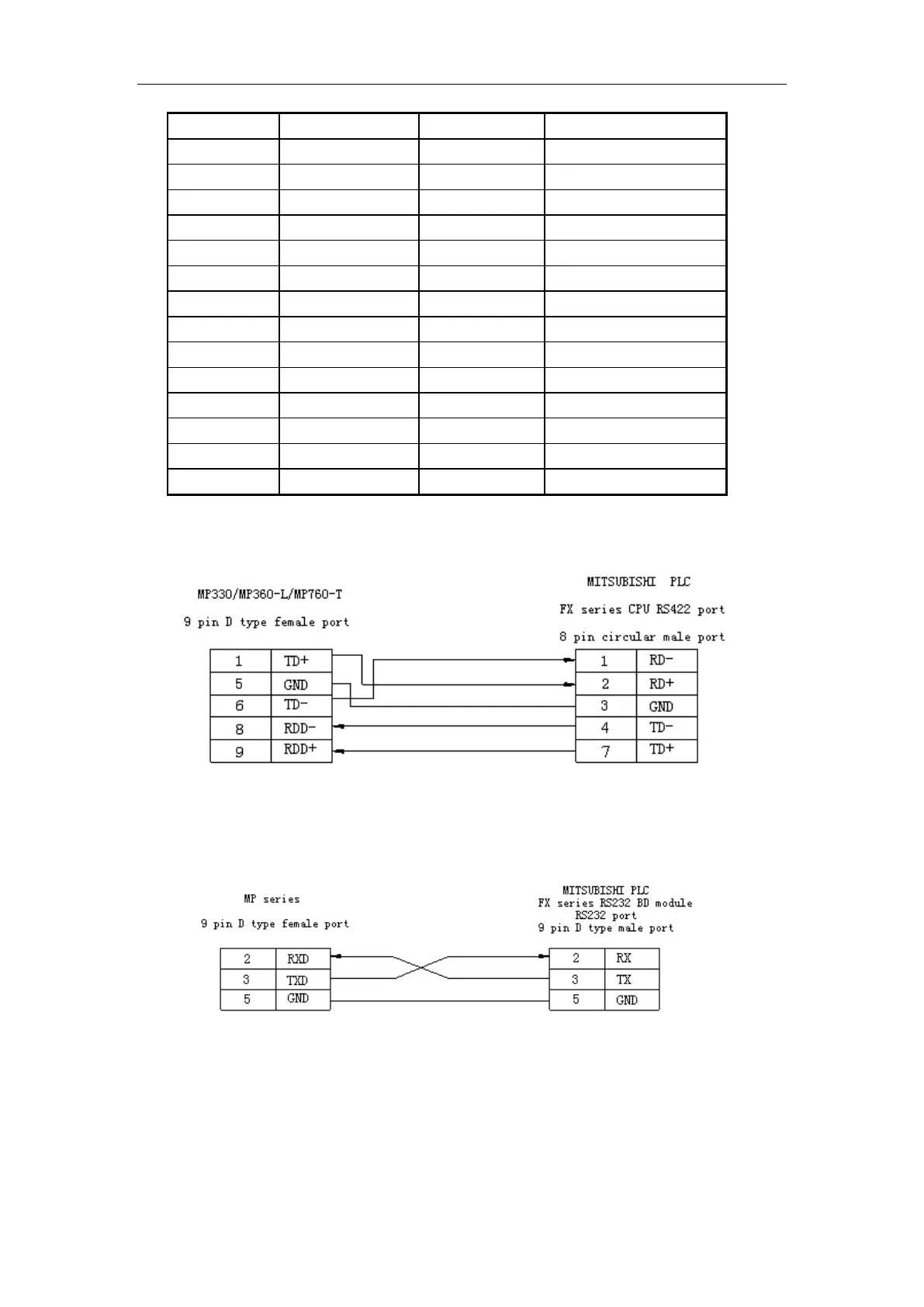

3. Connection Type
(1) connect to FX series CPU (RS422 port)
Suitable model：MP330、MP360-L、MP760-T
(2) connect to FX series communication module RS232BD
Suitable model：MP330、MP330-S、MP360-L、MP760-T
(3) connect to FX series communication module RS485BD
