Xinje MP Series User Manual

55

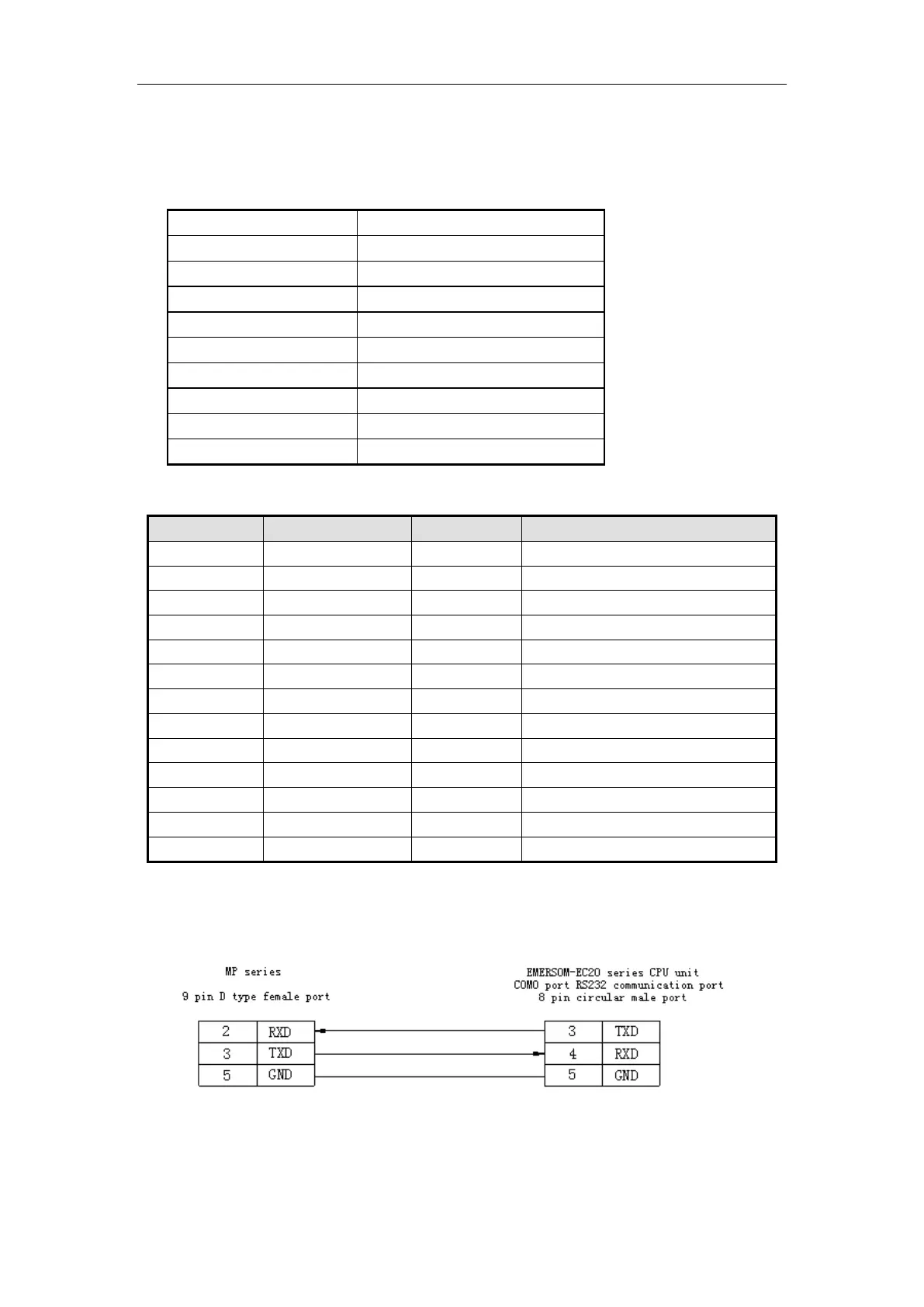

3-13．Emerson EC20 series
1. software settings
parameters
Recommended settings
MP communication port
Communication port
PLC communication port
Terminal port
Communication type
RS232
Communication distance
15m
Data bit
8
Stop bit
1
Verification mode
Even
Baud rate
19200
Modbus number
1
2. Address
PLC address
Operational range
Data type
Description
X
0~377
Bit
External input coil
Y
0~377
Bit
External output coil
M
0~2047
Bit
Internal auxiliary coil
S
0~1023
Bit
Special auxiliary coil
T
0~255
Bit
Timer status
C
0~255
Bit
Counter coil
SM
0~9999
Bit
Special internal auxiliary coil
D
0~7999
Word/D Word
Data registers
SD
0~255
Word/D Word
registers
Z
0~15
Word/D Word
registers
T
0~255
Word/D Word
registers
C16
0~199
Word/D Word
16 counter
C32
200~255
Word/D Word
32 counter
3. Connection type
(1) connect to COM0 communication port (RS232)
Suitable model：MP330、MP330-S、MP360-L、MP760-T
