Xinje MP Series User Manual

50

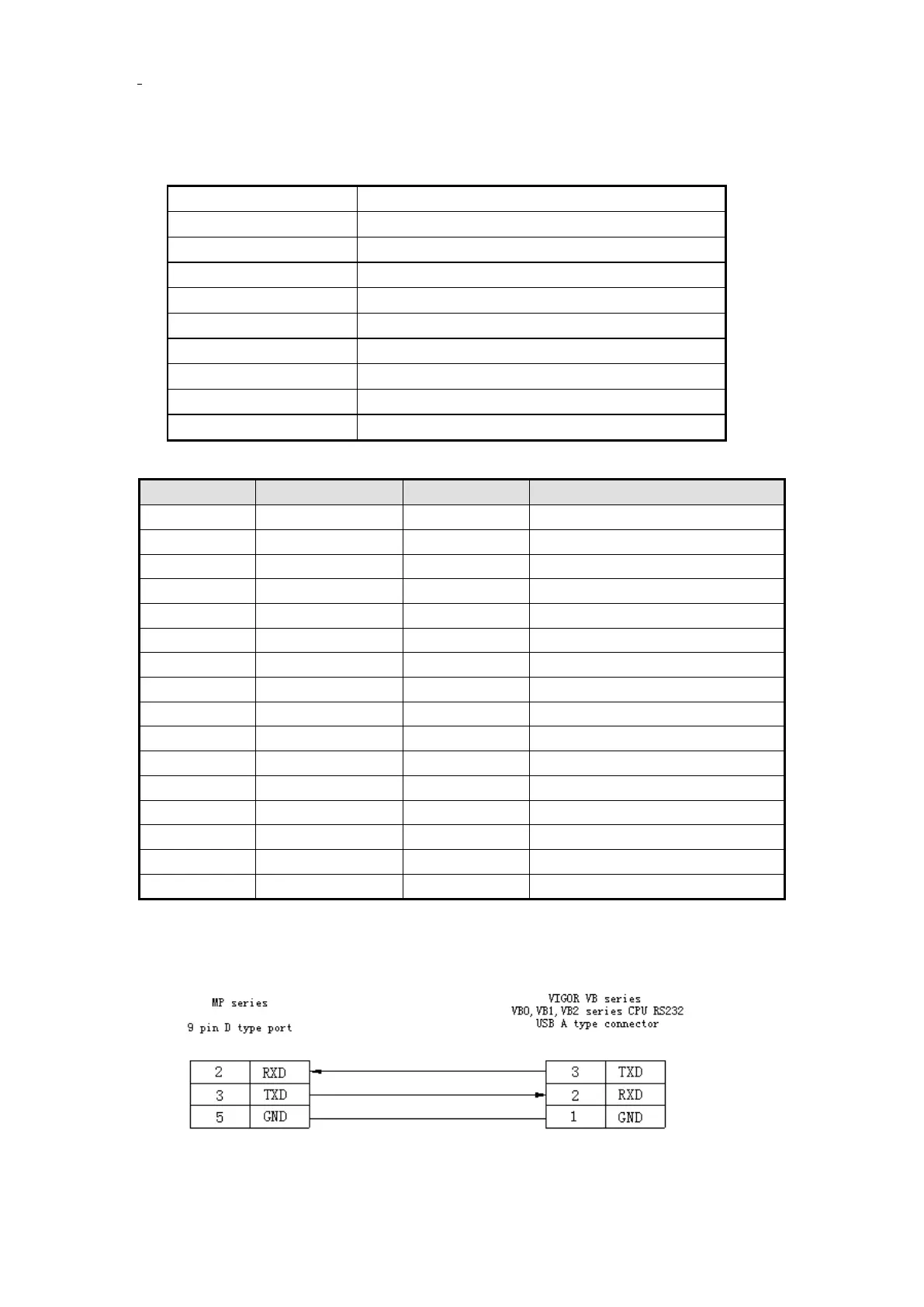

3-11．Vigor VB series
1. software settings
Parameters
Recommended settings
MP communication port
Communication port
PLC communication port
Communication port/expanded communication port
Communication type
RS232
Communication distance
15m
Data bit
7
Stop bit
1
Verification mode
Even
Baud rate
19200
Modbus number
1
2. Address
PLC address
Operational range
Data type
Description
X
0~777
Bit
External input coil
Y
0~777
Bit
External output coil
M
0~9255
Bit
Internal auxiliary coil
S
0~999
Bit
Special auxiliary coil
TSTATUS
0~255
Bit
Timer status
CSTATUS
0~255
Bit
Counter status
TCOIL
0~255
Bit
Timer
CCOIL
0~255
Bit
Counter
C16
0~199
Word
16 counter
C32
200~255
D Word
32 counter
D
0~9255
Word/ D Word
Data registers
TW
0~255
Word/ D Word
Current value
X
0~777
Word/ D Word
Registers
Y
0~777
Word/ D Word
Registers
M
0~9255
Word/ D Word
Registers
S
0~999
Word/ D Word
Registers
3. connection type
(1) connect to CPU unit A type of USB connector communication (RS232)
Suitable model：MP330、MP330-S、MP360-L、MP760-T
