22

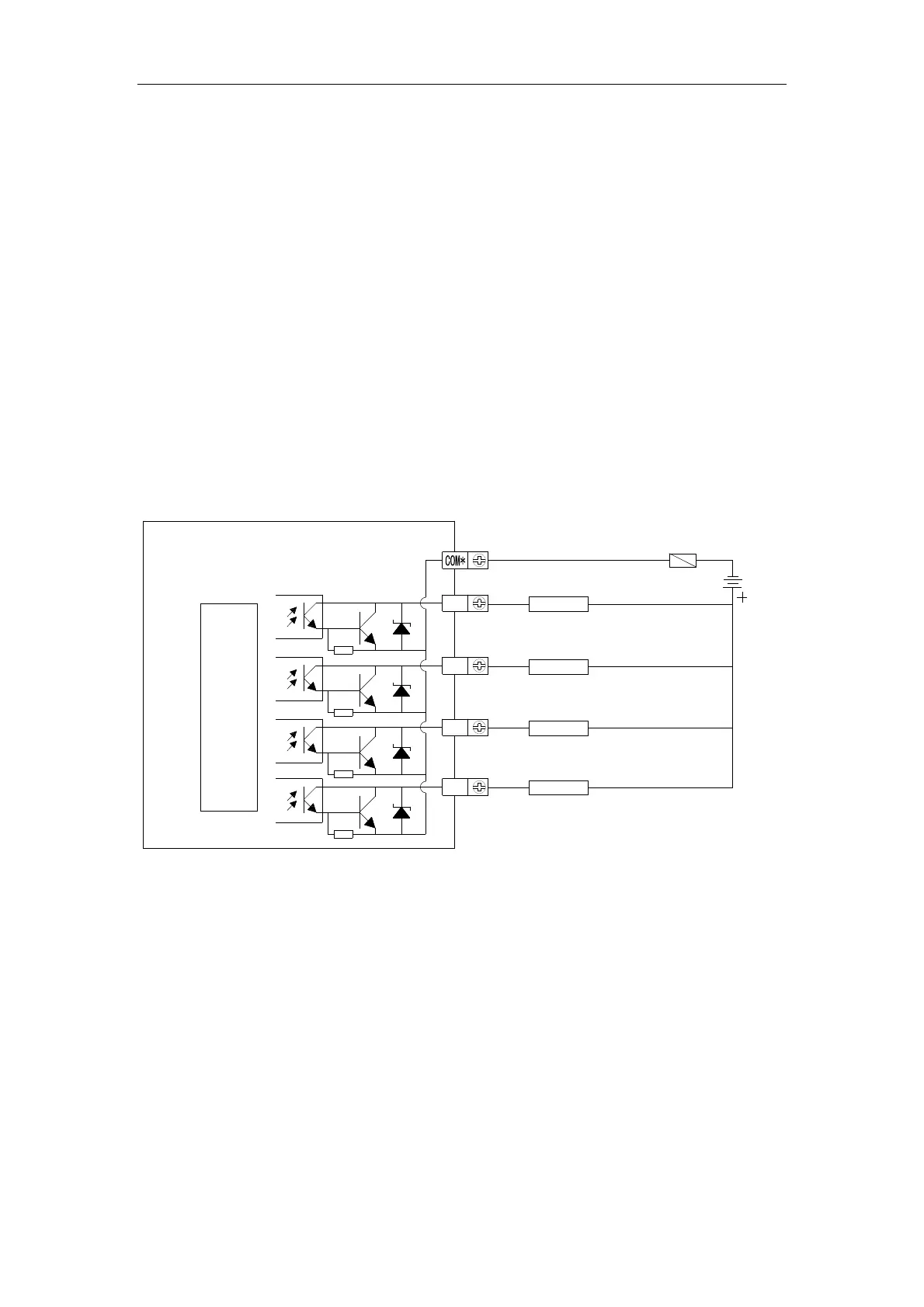

There is one common point for basic unit transistor output
l Power supply
The load circuit power supply should be steady voltage of DC5~30V.
l Circuit insulation
The inside circuit of XP/XMP is insulated with output transistor by optical coupler.
l Action indication
When driving optical coupling，LED lights，output transistor is ON.
l Response time
From optical coupler driving (or cut) to transistor ON (or OFF), the time is below 0.2ms.
l Output current
The current is 0.4A per point. But due to restriction of temperature going up, the total current
is 0.8A every four points.
l Open current
Less than 0.1mA.
use suitable fuse for the load
To avoid burning PLC basic circuit
DC power
DC5~30V
Load
Load
Load
Load
1A
circuitdrive
photo-electricity
Y*4
Y*5
Y*6
Y*7
supply
